Wet deslagger
Level measurement in the wet deslagger
|
|
Process data
Measuring task:
Level measurement
Measuring point:
Wet deslagger
Measuring range up to:
1 m
Medium:
Water and slag
Process temperature:
+20 … +80 °C
Process pressure:
0 … 0 bar
Special challenges:
Abrasive medium, steam, foaming
Application
The hot, burned-out slag falls into the water quenching bath of the deslagger. A mechanical discharge mechanism pushes the slag out and, while doing so, presses out most of the entrained water. Evaporation and slag removal cause a steady loss of water. For that reason the water level in the deslagger has to be measured and replenished as required.
Your benefit
Reliable
Reliable function despite abrasive
Cost effective
Automatic operation ensures optimum level at all times
User friendly
Maintenance-free operation
Recommended products
Solution 1
Solution 2
VEGAPULS 6X
Level measurement with radar in the wet deslagger
- Precise measurement of small level differences
- Non-contact measurement unaffected by abrasion
- Exact measurement results even with density changes
Measuring range - Distance
120 m
Process temperature
-196 ... 450 °C
Process pressure
-1 ... 160 bar

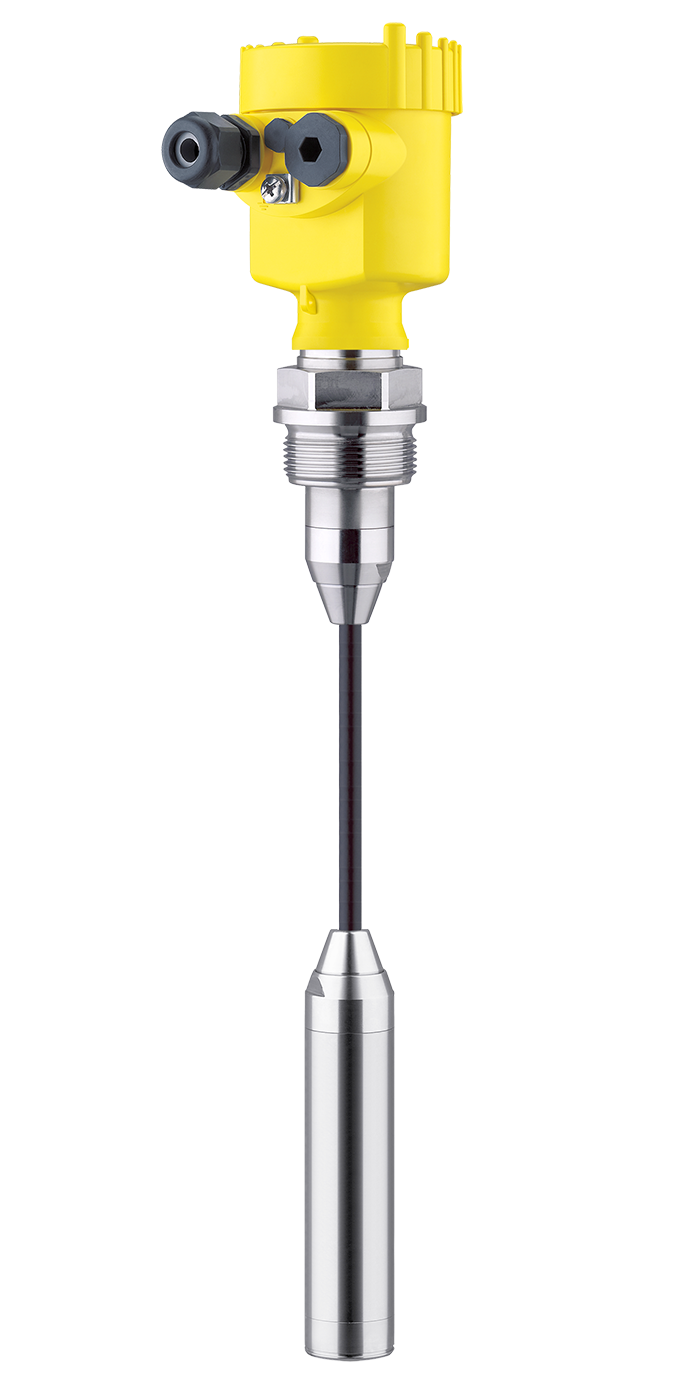

VEGABAR 86
Hydrostatic level measurement in the wet deslagger
- Precise measurement of small level differences
- Highly resistant to abrasion
- Measurement independent of tank shape and internal fixtures
Measuring range - Pressure
0 ... 25 bar
Process temperature
-20 ... 100 °C
Process pressure
0 ... 25 bar
