Combined Sewer Overflow (CSO)
Level measurement in the stormwater overflow chamber
|
|
Process data
Measuring task:
Level measurement
Measuring point:
Overflow basin
Measuring range up to:
0 … 5 m
Medium:
Rainwater
Process temperature:
+10 ... +30 °C
Process pressure:
0 … 0 bar
Special challenges:
Fouling, condensation, inundation
Application
Large Combined Sewer Overflows (CSOs) protect the wastewater treatment plant from a capacity overload during heavy rain. The precipitation is temporarily stored and then delivered to the treatment plant at a reduced rate. If the stormwater basin cannot hold the accumulating quantities of water, part of it is discharged. Due to legal requirements, such operational events and discharged water quantities must be measured and documented. A level sensor provides the required measurement data.
Your benefit
Reliable
High operational reliability even when subjected to inundation
Cost effective
Reliable measurement and maintenance-free operation
User friendly
Simple setup and adjustment
Recommended products
Solution 1
Solution 2
VEGAPULS C 22
Event duration and storm water retention monitoring using radar level sensor
- Reliable overfill detection and measuring results, independent of operating conditions
- Radar based sensor enables accurate monitoring of level and discharge quantity
- Level monitoring without brackets which can cause problems with ragging and fouling
- Secure, user-friendly wireless operation via Bluetooth with smartphone, tablet or PC
Measuring range - Distance
15 m
Process temperature
-40 ... 80 °C
Process pressure
-1 ... 3 bar
VEGAMET 861
Controller and display instrument for level and flow volume computation
- Clearly arranged display for indication of retained and discharged quantities
- Highly accurate calculation of the discharge volume
- Large measurement data memory with micro SD card
Protection rating
IP66/IP67, Type 4X
Input
1 x 4 … 20 mA/HART sensor input
2x digital input
Output
1 x 0/4 … 20 mA current output
1x failure relay (instead of operating relay)
4x operating relay
VEGAWELL 52
Hydrostatic level measurement for the documentation of impoundment and discharge events
- Simple installation and reliable measurement in tight spaces
- Long term stability allows maintenance-free operation
- Robust ceramic measuring cell ensures reliable operation High accuracy through use of optimally graduated measuring cells
Measuring range - Pressure
0 ... 60 bar
Process temperature
-20 ... 80 °C
Process pressure
-

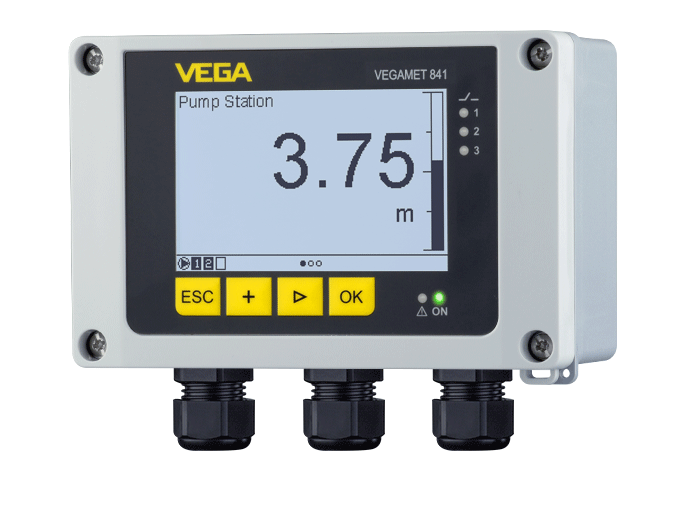

VEGAMET 841
Controller and display instrument for pump control
- Universal controller for simple pump control
- Fast setup and commissioning thanks to simple menu navigation and application wizards
Protection rating
IP66/IP67, Type 4X
Input
1 x 4 … 20 mA sensor input
Output
1 x 0/4 … 20 mA current output
3 x operating relay
1x failure relay (instead of operating relay)
