Sulphur decanter

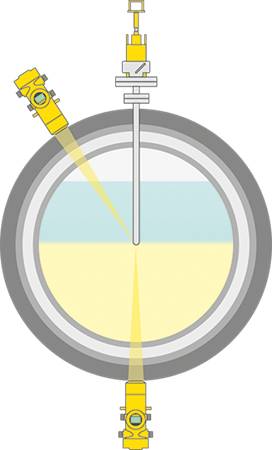

Density and interface measurement in the sulphur decanter
|
|
Process data
Measuring task:
Density and interface measurement
Measuring point:
Horizontal bullet
Measuring range up to:
15 m
Medium:
Elemental sulphur and water
Process temperature:
+90 … +120 °C
Process pressure:
+1 … +3 bar
Special challenges:
Double wall tank, very aggressive medium
Application
In a sulphur decanter, the operator must manually verify the interface level of the sulphur deposits as they slowly build up under the water. An instrument that can automate the measurement and enable continuous operation of the process ensures availability of the vessel and minimal impact on the downstream process.
Your benefit
Reliable
Unaffected by process characteristics
Cost effective
Low maintenance device reduces costs of cleaning and recalibration
User friendly
No manual involvement to determine the level
Recommended products
MINITRAC 31
Radiation-based sensor for density and interface measurement in the sulphur decanter
- Detector placement maximizes process insight with minimum source size
- Optimized measurement across vessel width eliminates the need for manual involvement
- Paired with insertion source for sulphur decanting automation
Measuring range - Distance
-
Process temperature
-40 ... 60 °C
Process pressure
-
