Condensate storage tanks

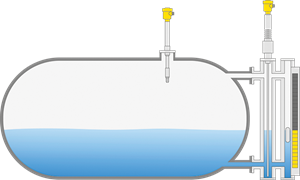

Level measurement and point level detection in condensate storage tanks
|
|
Process data
Measuring task:
Level measurement and point level detection
Measuring point:
Horizontal bullet
Measuring range up to:
3 m
Medium:
Water
Process temperature:
+120 … +230 °C
Process pressure:
+1 … +10 bar
Special challenges:
High temperature, steam, condensate
Application
Throughout the different process units, there are storage vessels that collect clean, reusable condensate. This condensate accumulates from the steam system that is used to heat the various hydrocarbon processes. The condensate tanks routinely have extremely high process temperatures, so a level measurement and point level detection are necessary that can withstand this environment.
Your benefit
Reliable
Safe measurement unaffected by high temperature and steam
Cost effective
Maintenance-free through optimal redundancy arrangement
User friendly
Simple setup and installation
Recommended products
VEGAFLEX 86
Level measurement with guided wave radar in condensate storage tanks
- Guided wave radar and magnetic level indicator provide redundancy
- Reliable measurement even under critical process conditions
- Continuous reporting increases operational efficiency
Measuring range - Distance
75 m
Process temperature
-196 ... 450 °C
Process pressure
-1 ... 400 bar
VEGASWING 66
Vibrating level switch for level detection in condensate storage tanks
- Easy retrofit allows use of existing connections without modification
- Resistance to high temperature and steam environments eliminates false switching
- Maintenance-free operation increases the plant efficiency
Process temperature
-196 ... 450 °C
Process pressure
-1 ... 160 bar
Version
Compact version
with gas-tight leadthrough
with tube extension
