VEGATOR 121

Single channel controller for level detection

Transmission of 8/16 mA signals for level signalling (single channel)

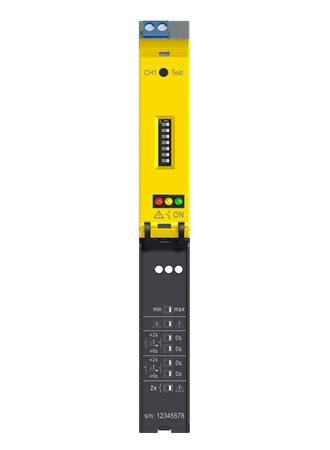

VEGATOR 121 - Single channel controller for level detection
VEGATOR 121

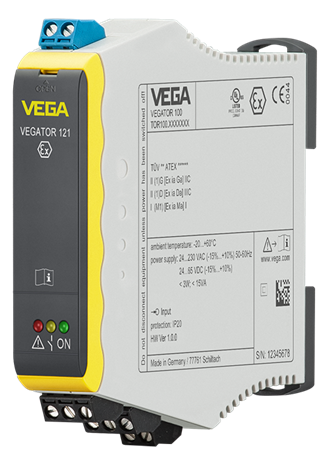

VEGATOR 121 - Single channel controller for level detection
VEGATOR 121

Application area

The VEGATOR 121 is a controller for level detection with relay output for the vibrating level switches VEGASWING, VEGAVIB and VEGAWAVE with electronics version "Two-wire 8/16 mA“. With this instrument simple control tasks can be solved. Typical applications are monitoring functions such as overflow or dry run protection. Optionally a false signal output is available.

Your benefit

  • Simple installation though carrier rail mounting as well as detachable, coded terminals
  • Comprehensive monitoring detects short circuit and open circuit of the measuring line and disturbances in the sensor
  • Flexible application area by switching over option of the fail safe relay to the second function relay
  • Simple and convenient function test by means of test button including automated evaluation (also for SIL and WHG)

Base price

AU$ 670.00

Detailed information on prices and delivery times can be found in the Configurator.

Staggered Prices

Quantity Price
from 1 AU$ 670.00
from 5 10 % Discount
from 10 Please contact us!
Configure & order

All documents and software for this product can be found in our Download Center.

Show all downloads
Application
Technical specifications
Documentation
Accessories
Configure product

Other applications

Grit trap

Grit trap

Point level detection in a grit trap

To the application

Sludge dewatering

Sludge dewatering

Level detection of sludge and water

To the application

Chemical tank

Chemical tank

Level measurement and point level detection in chemical tanks

To the application
Technical specifications
Protection rating
  • IP20
Input
  • 1 x sensor input two-wire 8/16 mA
Output
  • 1 x operating relay (SPDT)
  • Optionally 1 x fail safe relay output (SPDT)
Ambient temperature
  • -20 ... 60 °C
Signal input (specify)
  • Two-wire 8/16 mA
Signal output (specify)
  • Operating relay
  • Fail safe relay
Approvals
Scope
  • ATEX / Europe
  • CSA / Canada
  • FM / USA
  • IEC / worldwide
Explosion protection
  • Intrinsic safety "i"
  • Dust explosion protection through housing "t"
Overfill protection
  • WHG
SIL qualification
  • SIL2
Display & adjustment
Adjustment
  • DIP switch
Indication
  • LED
