VEGAWAVE S61

Vibrating level switch for granular bulk solids

For granulated bulk solids from density 100 g/l

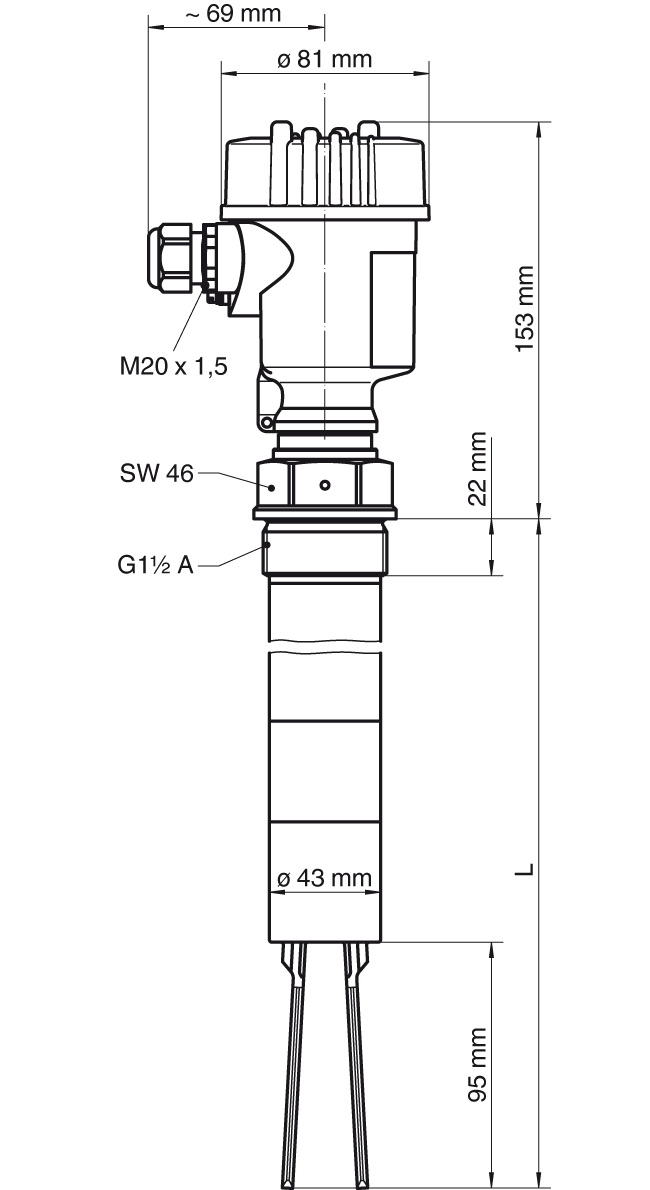

VEGAWAVE S61 - Vibrating level switch for granular bulk solids
VEGAWAVE S61 - Vibrating level switch for granular bulk solids
VEGAWAVE S61 - Vibrating level switch for granular bulk solids

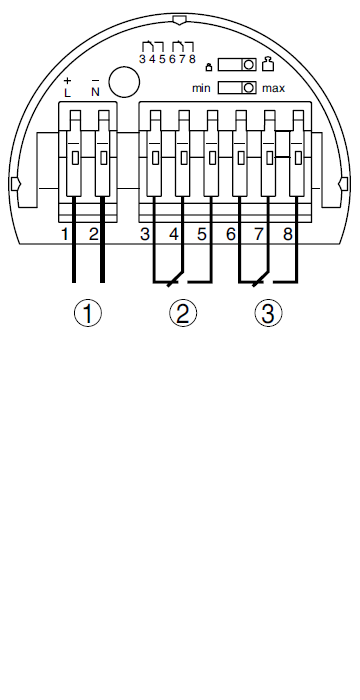

Electronic „R“ - Relais (DPDT)
VEGAWAVE S61 - Vibrating level switch for granular bulk solids

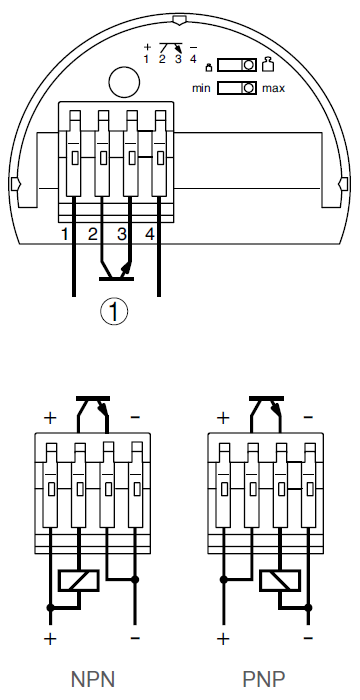

Electronic „T“ - Transistor (NPN/PNP)

Application area

Pre-configured lengths of 165, 500, 1000 or 1500 mm available. Limited choice of electronics and approvals.
The VEGAWAVE S61 is a level switch for universal use in powders and fine-grained bulk solids. The level switch detects reliably and robust the min. or max. level. The tuning fork is ideal for use either in adhesive and abrasive products as well as in bulk solids with very low density.

Base price

AU$ 660.00

Detailed information on prices and delivery times can be found in the Configurator.

Staggered Prices

Quantity Price
from 1 AU$ 660.00
from 5 10 % Discount
from 10 Please contact us!
Configure & order

All documents and software for this product can be found in our Download Center.

Show all downloads
Application
Technical specifications
Documentation
Accessories
Configure product

Application area

Application
VEGAWAVE S 61 is used as a level switch in free flowing powders and fine-grained solids and detects reliably and accurately when a point level is reached. The rugged design is ideal for coarse products and can be used under heavier loading conditions than a vibrating rod device. E.g. Grain, fine aggregates and heavy powders such as cement.
Technical specifications
Measuring range - Distance
  • - [Meter - Foot]
Process temperature
  • -50 ... 150 °C [°C - °F]
Process pressure
  • -1 ... 25 bar [Bar - kPa - psi]
Version
  • Standard
Materials, wetted parts
  • 316L
Threaded connection
  • ≥ G1½, ≥ 1½ NPT
Seal material
  • no media contact
Housing material
  • Plastic
Protection rating
  • IP66/IP67
Output
  • Relay (DPDT)
  • Transistor (NPN/PNP)
Ambient temperature
  • -40 ... 80 °C
Approvals
Scope
  • ATEX / Europe
Explosion protection
  • Dust explosion protection through housing "t"
Display & adjustment
Indication
  • LED

Drawing generator

Generate 2D and 3D drawings for your specific configuration.

Configure Now

Product catalog

Vibration

    • EN
    • DE
    • CS
    • ES
    • FR
    • IT
    • NL
    • PL
    • PT
    • TR
    • ZH
Download

Operating instructions

VEGAWAVE S 61

Relay (DPDT), Transistor (NPN/PNP)

    • EN
    • DE
    • ES
    • FR
    • PL
Download

Drawing generator

Generate 2D and 3D drawings for your specific configuration.

Configure Now

Further downloads for this product

All documents and software for this product can be found in our Download Center.

Show all downloads
