Evaporator
Density and pressure measurement during spice slurry thickening
Process data
Measuring task:
Density and pressure measurement
Measuring point:
Evaporator
Measuring range up to:
1100 … 1600 kg/m3
Medium:
Spice paste
Process temperature:
+20 … +135 °C
Process pressure:
0 … +1 bar
Special challenges:
High process temperatures and abrasion
Application

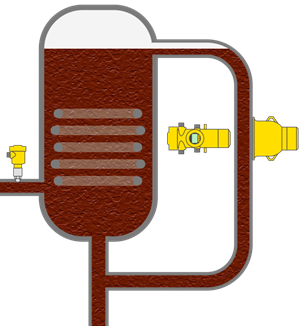

In the production of spices, the spices are first mixed with water and oil to form a slurry. This is fed into an evaporator, where water is removed to turn it into a kind of syrup. The thickened spice syrup must have exactly the right density - so that it can be spread thinly onto metal sheets for oven drying, ready to be ground into powder. To ensure the optimal density of the spice syrup, it requires a continuous measurement during manufacture. The pressure in the feed pipe leading to the evaporator also requires careful monitoring to ensure a smooth-running production process.
Your benefit
Reliable
Reliable measurement independent of process conditions
Cost effective
plics® concept: short delivery time and standardized operation
User friendly
Simple installation and commissioning
Recommended products
![Radiometrischer Sensor zur Grenzstanderfassung und Dichtemessung MINITRAC31](/-/media/images/products/sensors/f-minitrac-radiometrischer-sensor-zur-grenzstanderfassung-und-dichtemessung-minitrac31-v01.png?rev=60b7259614af4fc9bd2a50627ecc65f7&mw=105&hash=8E279C2DFCBEE5352C0075D9C20690C2)
MINITRAC 31
Radiation-based sensor for density measurement in the evaporator
- External non-contact measurement through the pipeline regardless of process conditions and product properties
- Small, compact design enables space-saving installation
- PLICSCOM display and adjustment module for quick setup and on-site display of measured values
Measuring range - Distance
-
Process temperature
-40 ... 60 °C
Process pressure
-
![VEGABAR 82](/-/media/images/products/sensors/f-br82-pressure-sensor-with-ceramic-measuring-cell-vegabar82-flange.png?rev=2f68fabc17014bc7b2cd95da4823d5a2&mh=140&hash=144B6143B07E43DCC10E7172810D91D8&mw=105)
VEGABAR 82
Pressure transmitter for monitoring pressure in the evaporator feed pipe
- Wear-resistant CERTEC® ceramic measuring cell is non-sensitive to abrasion
- Absolutely front-flush ceramic diaphragm avoids sticking and abrasion damage
- Long service life thanks to the robust measuring cell
Measuring range - Distance
-
Measuring range - Pressure
-1 ... 100 bar
Process temperature
-40 ... 150 °C
