Fuel tanks
Level measurement and point level detection in fuel tanks
|
Hydrostatic, Vibration

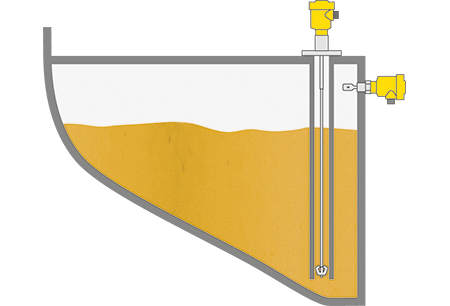

Guided Wave Radar, Vibration
|
Process data
Measuring task:
Level measurement and point level detection
Measuring point:
Tank
Measuring range up to:
5 m
Medium:
Fuel (diesel / petrol)
Process temperature:
0 … +40 °C
Process pressure:
0 … 0 bar
Special challenges:
Geometry of the tank
Application
The fuel tanks are some of the most important on board. They store a variety of fuels; diesel for the main engine and power generators, petrol for jet skis and dinghies, even aviation fuel for the helicopter. Level measurement ensures optimum availability of fuel at all times. An additional overfill protection system also ensures maximum safety for the environment.
Your benefit
Reliable
Maximum safety for humans and the environment
Cost effective
Precise measurement in all fuel tanks
User friendly
Maintenance-free, reliable operation
Recommended products
Hydrostatic, Vibration
Guided Wave Radar, Vibration
VEGASWING 61
Vibrating level switch as overfill protection in the fuel tank
- Reliable detection of the level, regardless of media properties
- Simple side mounting
- Adjustment and maintenance-free operation
Measuring range - Distance
-
Process temperature
-50 ... 250 °C
Process pressure
-1 ... 64 bar
VEGAWELL 52
Hydrostatic level measurement in fuel tanks
- Rugged ceramic-capacitive CERTEC® measuring cell
- Simple installation from the top or side
- Highly chemically resistant FEP cable
Measuring range - Pressure
0 ... 60 bar
Process temperature
-20 ... 80 °C
Process pressure
-
VEGASWING 61
Vibrating level switch as overfill protection in the fuel tank
- Reliable detection of the level, regardless of media properties
- Simple side mounting
- Adjustment and maintenance-free operation
Measuring range - Distance
-
Process temperature
-50 ... 250 °C
Process pressure
-1 ... 64 bar
VEGAFLEX 81
Continuous level measurement with guided radar in the fuel tank
- Universally applicable for all media
- Precise level measurement under all process conditions
- Rod or cable design allows for easy installation
Measuring range - Distance
75 m
Process temperature
-60 ... 200 °C
Process pressure
-1 ... 40 bar
