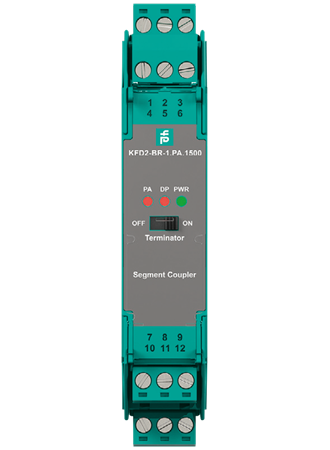

Profibus PA/DP segment coupler

Segment coupler from Profibus DP to Profibus PA


Profibus PA/DP segment coupler

Application area

For use in conjunction with Profibus DP/PA bus systems. The segment coupler is suitable for coupling and power supply of Profibus PA networks. The Ex version ensures Ex intrinsic safety in conjunction with Ex circuits.

Your benefit

  • Simple setup because no own GSD, DTM or EDD file or address must be used
  • Reliable connection to Ex circuits by standardized FISCO procedure
  • Economical, compact version with up to 10 Ex or 32 non-Ex field devices

Configure product

Configure product

All documents and software for this product can be found in our Download Center.

Show all downloads
Application
Technical specifications
Documentation
Accessories
Configure product
Technical specifications
Protection rating
  • IP20
Ambient temperature
  • -20 ... 60 °C
Signal input (specify)
  • Fieldbus
Signal output (specify)
  • Fieldbus
Approvals
Scope
  • ATEX / Europe
Explosion protection
  • Intrinsic safety "i"
  • Dust explosion protection through housing "t"
Display & adjustment
Indication
  • LED

Operating instructions

PA-KOPPLER.X

    • EN
    • DE
