VEGASWING 63
Vibrating level switch with tube extension for liquids
For liquids (density: > 0.5 ... 2.5 g/cm³) – with tube extension
|
|
Application area
Your benefit
- Precise and reliable function due to product-independent switching point
- Low maintenance costs
- Minimum time and cost expenditure thanks to simple setup without medium
Configure product
Product comparison
All documents and software for this product can be found in our Download Center.
Show all downloadsOther applications
- -50 ... 250 °C [°C - °F]
- -1 ... 64 bar [Bar - kPa - psi]
- Standard
- Hygienic applications
- with gas-tight leadthrough
- with tube extension
- with temperature adapter
- PFA
- 316L
- Alloy C22 (2.4602)
- Alloy 400 (2.4360)
- ECTFE
- Enamel
- ≥ G¾, ≥ ¾ NPT
- ≥ DN25, ≥ 1"
- Clamp ≥ 1" - DIN32676, ISO2852
- Slotted nut ≥ 1½", ≥ DN40 - DIN 11851
- Varivent ≥ DN25
- hygienic fitting F40 with compression nut
- SMS 1145 DN51
- SMS DN38
- Hygienic fittings ≥ DN25 - DIN11864-1-A
- Hygienic flange connection DIN11864-2-A; DN60(ISO)ø60,3
- SMS socket piece DN38 PN6
- no media contact
- Plastic
- Aluminium
- Stainless steel (precision casting)
- Stainless steel (electropolished)
- IP66/IP67
- IP66/IP68 (1 bar)
- IP65
- Relay (DPDT)
- Contactless electronic switch
- Transistor (NPN/PNP)
- Two-wire
- NAMUR
- -40 ... 70 °C
- ATEX / Europe
- CSA / Canada
- FM / USA
- EAC (GOST) / Belarus
- EAC (GOST) / Kazakhstan
- EAC (GOST) / Russia
- IEC / worldwide
- KOSHA / Korea
- NEPSI / China
- UKR Sepro / Ukraine
- INMETRO / Brazil
- CCOE / India
- Intrinsic safety "i"
- Flameproof enclosure "d"
- Dust explosion protection through housing "t"
- 3A
- EHEDG
- FDA
- ABS
- BV
- CCS
- DNV
- GL
- LR
- RINA
- RMROS
- WHG
- VLAREM II
- SIL2
- Pluggable display module PLICSLED
Drawing generator
Generate 2D and 3D drawings for your specific configuration.
Configure NowProduct catalog
Vibration
Product information
VEGASWING 51, 53, 61, 63, 66
Specification sheet
VEGASWING 63
Relay (DPDT)
Operating instructions
VEGASWING 63
Relay (DPDT)
Drawing generator
Further downloads for this product
All documents and software for this product can be found in our Download Center.
Show all downloadsPLICSLED
Universal display module suitable for all sensors of the VEGA plics® family with relay output
Show ProductVEGATOR 111
Transmission of NAMUR signals for level signalling
Show ProductVEGATOR 112
Transmission of NAMUR signals for level signalling
Show ProductVEGATOR 121
Transmission of 8/16 mA signals for level signalling
Show ProductVEGATOR 122
Transmission of 8/16 mA signals for level signalling
Show ProductLock fitting for VEGASWING 63
With the lock fittings, sensors with tube extension can be fixed infinitely.
Show ProductWelded socket VEGASWING 61/63
Welded sockets are used to connect the sensors to the process.
Show ProductReduction flange enamelled

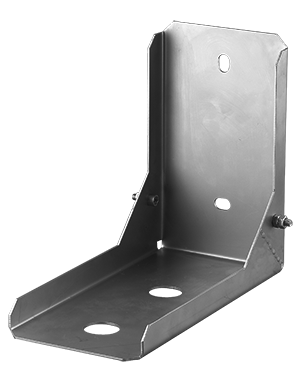

Mounting bracket
