Autonomous radar sensors: VEGAPULS Air

Autonomous radar sensors deliver digital measured values – anywhere and at any time

The sensors of the VEGAPULS Air series are the right solution for almost all autonomous level measurements of bulk solids and liquids – whether in plastic containers, IBC containers, mobile silos, process vessels or tanks. The protection classes of the housings ensure continuous, maintenance-free operation, even outdoors.

VEGAPULS Air sensors operate wirelessly and are powered by a battery. This means they can be put into operation immediately after simple installation. Thanks to their wide range of possible applications, the autonomous radar sensors can be used in cities and various areas of industry, such as logistics, production or agriculture, to optimise processes.

Overview of the autonomous VEGAPULS Air level sensors

for small plastic containers
For all types of bulk solids silos and liquid tanks

for small plastic containers

slide 1 to 3 of 3

VEGAPULS Air 23

NB-IoT/CAT-M1, LoRa
Measuring range up to 3 m
Accuracy ± 5 mm

Ceiling mounting

Show Product

VEGAPULS Air 23

NB-IoT/CAT-M1, LoRa
Measuring range up to 3 m
Accuracy ± 5 mm

flexible, interchangeable holder

Show Product

VEGAPULS Air 23

NB-IoT/CAT-M1, LoRa
Measuring range up to 3 m
Accuracy ± 5 mm

Bonded connection

Show Product

For all types of bulk solids silos and liquid tanks

slide 1 to 2 of 2

VEGAPULS Air 41

NB-IoT/CAT-M1, LoRa
Measuring range up to 15 m
Accuracy ± 2 mm
Thread 1½
Show Product

VEGAPULS Air 42

NB-IoT/CAT-M1, LoRa
Measuring range up to 30 m
Accuracy ± 2 mm
Flange from DN80
Show Product

Wireless technologies: Mobile telephony and LoRa

slide 1 of 3

Mobile telephony or LoRaWAN – which technology is the most suitable?

The two mobile communications technologies NB-IoT (Narrowband Internet of Things) and LTE-M (Long-Term Evolution for Machines) as well as LoRaWAN (Long Range Wide Area Networks) belong to the Low Power Wide Area Networks (LPWAN). They are all characterised by low costs, low energy consumption and high building penetration. The batteries last for many years and both technologies provide the necessary security thanks to their encryption.

LoRaWAN: This wireless standard transmits measurement and sensor data continuously – even over long distances.

Mobile telephony: The two technologies NB-IoT and LTE-M access the existing network of established mobile communications providers and can therefore be operated almost anywhere – without any complications or additional costs.

Both wireless technologies afford reliable data transmission, which noticeably simplifies the user’s processes.



How long do the batteries of VEGAPULS Air sensors last?

  • Depending on the model, the battery life can be up to
    > 10 years (LoRa, 4 measurements/data transmissions per day at 25 °C)
    > 6 years (mobile telephony, 4 measurements per day, 1 daily data transmission at 25 °C)
  • The autonomous sensors VEGAPULS Air 41 and 42 also have a replaceable battery
  • The standard battery is available worldwide
  • Replacement is carried out on site – quickly, easily and without any special tools

> Battery life calculator

IIoT ecosystem

The IIoT ecosystem optimises industrial processes. The data from VEGA sensors plays a key role in this. It is transmitted directly to the VEGA Cloud and fed into VEGA Inventory System (VIS). There, it ensures transparent monitoring of inventory levels and creates the basis for intelligent decisions in demand planning.

Instruments

Whether it's a mobile application with just one daily measurement or a fixed measuring station with several measurements per day – the requirements are as diverse as the possible ways in which the self-sufficient VEGA sensors can be used. What is always the same: VEGA offers the most suitable hardware solution to reliably send the sensor data to the cloud and securely transmit it to VIS, in order to make optimal use of all the advantages.

VEGA Cloud

The measured values are stored securely in the VEGA Cloud and are available to users quickly and easily at any time. Reliable encryption mechanisms, authentication and comprehensive rights management are used for the local server – not only for storing the data, but also transmitting it. Users can manage the data conveniently via tablet, smartphone or PC.

That’s VEGA Cloud Security (ISO 27001).

VEGA Inventory System

Whether global or regional: VEGA Inventory System provides users with an overview of all levels in the connected tanks, silos or rivers. The data forms the basis for efficient decisions.

VIS makes the following possible:
• Quick access to current and historical consumption data
• Economical production and supply planning
• Increased operational efficiency
• Cost savings through optimised logistics
• Notifications/alarm messages by e-mail, push messages or SMS
VEGA Inventory System

Integration into third-party systems

IoT and IIoT enable data exchange across the boundaries of individual systems or platforms. VEGA Inventory System therefore offers the option of integrating data from the VEGA Cloud into any other third-party system such as SAP or Salesforce. Data is exchanged conveniently via a RESTfull API.

VEGAPULS Air in use

VEGAPULS Air delivers precise measuring results regardless of the medium, process and ambient conditions. These radar sensors guarantee maintenance-free operation through non-contact, 80-GHz radar technology as well as simple installation thanks to their independent power supply and wireless technology.

This makes VEGAPULS Air the right choice for autonomous level measurement in mobile diesel tanks, animal feed silos, sanitary tanks and salt silos as well as sewer measurements for flood protection and many other applications.


for plastic containers
For transport containers
For street gullies

for plastic containers

Level measurement of liquids in transport containers
Measuring range up to 3 m
Accuracy ± 5 mm
slide 1 to 3 of 4

VEGAPULS Air 23

NB-IoT/CAT-M1, LoRa
Measuring range up to 3 m
Accuracy ± 5 mm

flexible, interchangeable holder

Show Product

LoRa Gateway

The gateway collects the received data and passes it on to VEGA Inventory System via mobile communications networks.
Transmission: GSM/GPRS/UMTS/LTE network

Show Product

VEGA Inventory System

VEGA Inventory System is a web-based software for simple remote enquiry, visualisation and trend analysis.
Show Product

For transport containers

Level measurement in the transport container
Measuring range up to 30 m
Accuracy ± 2 mm
Thread 1½
slide 1 to 3 of 4

VEGAPULS Air 42

Autonomous radar sensor with measured value transmission via wireless network

NB-IoT/CAT-M1, LoRa
Measuring range up to 30 m
Accuracy ± 2 mm
Thread 1½

Show Product

LoRa Gateway

The gateway collects the received data and passes it on to VEGA Inventory System via mobile communications networks.
Transmission: GSM/GPRS/UMTS/LTE network

Show Product

VEGA Inventory System

VEGA Inventory System is a web-based software for simple remote enquiry, visualisation and trend analysis.
Show Product

For street gullies

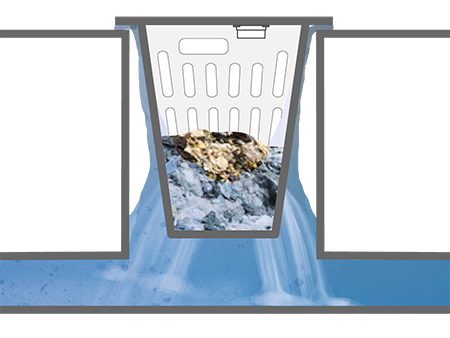

Level measurement for detection of deposits in gullies
Measuring range up to 3 m
Accuracy ± 5 mm
slide 1 to 3 of 4

VEGAPULS Air 23

Autonomous radar sensor with measured value transmission via wireless network

NB-IoT/CAT-M1, LoRa
Measuring range up to 3 m
Accuracy ± 5 mm

Show Product

LoRa Gateway

The gateway collects the received data and passes it on to VEGA Inventory System via mobile communications networks.
Transmission: GSM/GPRS/UMTS/LTE network

Show Product

VEGA Inventory System

VEGA Inventory System is a web-based software for simple remote enquiry, visualisation and trend analysis.
Show Product
