Osmosis filter

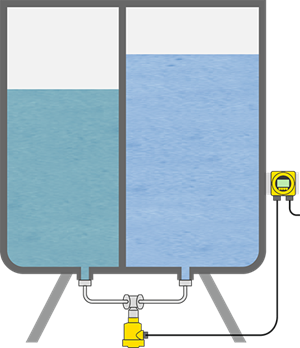

Differential pressure measurement in an osmosis filter
|
|
Process data
Measuring task:
Differential pressure measurement
Measuring point:
Filter
Measuring range up to:
+20 bar
Medium:
Sea water
Process temperature:
0 ... +25°C
Process pressure:
0 ... +20 bar
Special challenges:
Resistant to sea water
Application
Sea water is pressed through a semi-permeable membrane under high pressure. The semi-permeable membrane allows only water molecules to seep through. Salts, bacteria and viruses are retained in the filter. The finished product is almost the same as distilled water. A differential pressure measurement is needed to monitor the level of contamination across the filter.
Your benefit
Reliable
Approved materials according to FDA and EC 1935/2004, as well as local certification
Cost effective
Efficient cleaning of the filter is possible even during continuous operation
User friendly
Maintenance-friendly thanks to front-flush mounting
Recommended products
VEGADIF 85
Differential pressure transmitter for measuring the level of contamination in the filter
- Highly accurate measurement of the smallest differential pressure
- High reliability with integrated overload diaphragm system
- Static pressure output also possible through integrated sensor for multi parameter measurement
Measuring range - Pressure
-40 ... 40 bar
Process temperature
-40 ... 105 °C
Process pressure
-1 ... 400 bar
VEGADIS 81
External display and adjustment unit for 4 ... 20 mA HART sensors
- Simple voltage supply of display via the existing 4 ... 20 mA current loop
- Easy-to-read display in plain text with additional graphical support menu
- Simple operation via four buttons and a clearly structured menu
Housing material
Plastic
Aluminium
Stainless steel (precision casting)
Protection rating
IP66/IP67
Ambient temperature
-20 ... 70 °C
Mounting bracket for VEGADIF
Mounting bracket for differential pressure transmitter
- Weatherproof and robust 304 stainless steel construction
- Simple wall or pipe mounting
