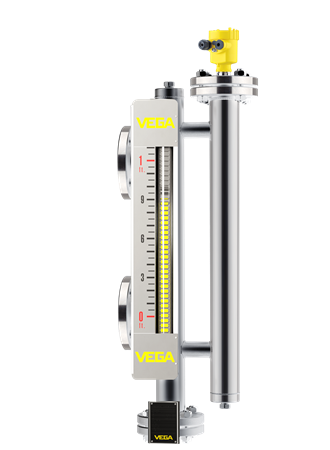

VEGAMAG 82
VEGAMAG 82
Application area
The VEGAMAG 82 series combination magnetic level indicator and Bypass bridle chamber provides the benefits of both visual indication and process control by using the proven technology of the VEGAFLEX to provide the most complete visual and guided microwave radar package in the industry. The VEGAMAG 82 can be configured to mount to most standard tank process connections as well as applications where interface measurements are needed.
Application
Technical specifications
Documentation
Accessories
Technical specifications
Measuring range - Distance
- 15 m [Meter - Foot]
Measuring range - Pressure
- - [Bar - kPa - psi]
Process temperature
- -195 ... 450 °C [°C - °F]
Process pressure
- -1 ... 400 bar [Bar - kPa - psi]
Accuracy
- ± 3 mm / ± 0.1"
Output
- 4 … 20 mA/HART
- Profibus PA
- Foundation Fieldbus
Approvals
SIL qualification
- SIL2
Further downloads for this product
All documents and software for this product can be found in our Download Center.
