VEGAPULS 64
Radar sensor for continuous level measurement of liquids
All-round radar instrument with 80 GHz – the frequency of the future
|
|
Application area
Your benefit
- Exact measuring results independent of process conditions
- High plant availability, because wear and maintenance-free
- Maintenance-free operation through non-contact measuring principle
Newer product available
There is a successor for this product. If you have any questions about the product, please contact your VEGA representative.
VEGAPULS 6XConfigure product
Product comparison
All documents and software for this product can be found in our Download Center.
Show all downloadsThe level sensor for non-contact level measurement of liquids can handle any measuring situation
- 30 m [Meter - Foot]
- -196 ... 200 °C [°C - °F]
- -1 ... 25 bar [Bar - kPa - psi]
- ± 1 mm
- 80 GHz
- ≥ 3°

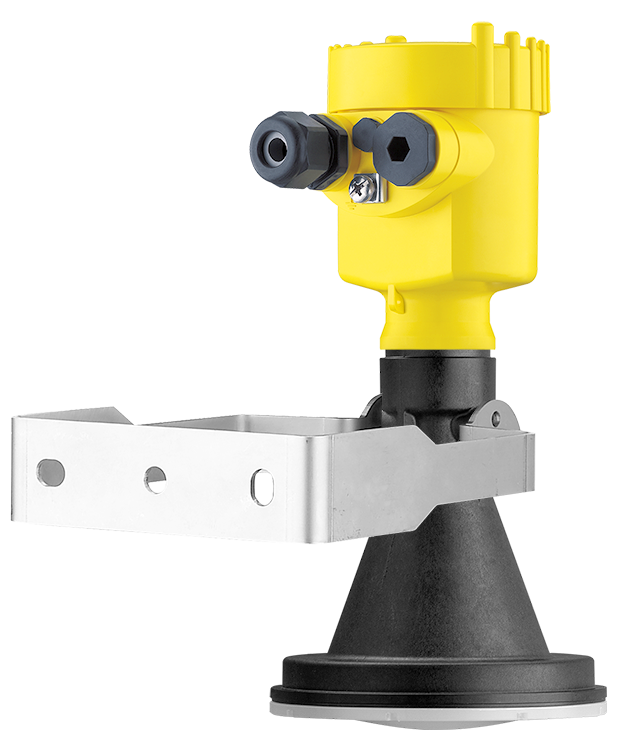

- with plastic horn antenna ø 80 mm
- Thread with integrated horn antenna
- Flange with encapsulated antenna system

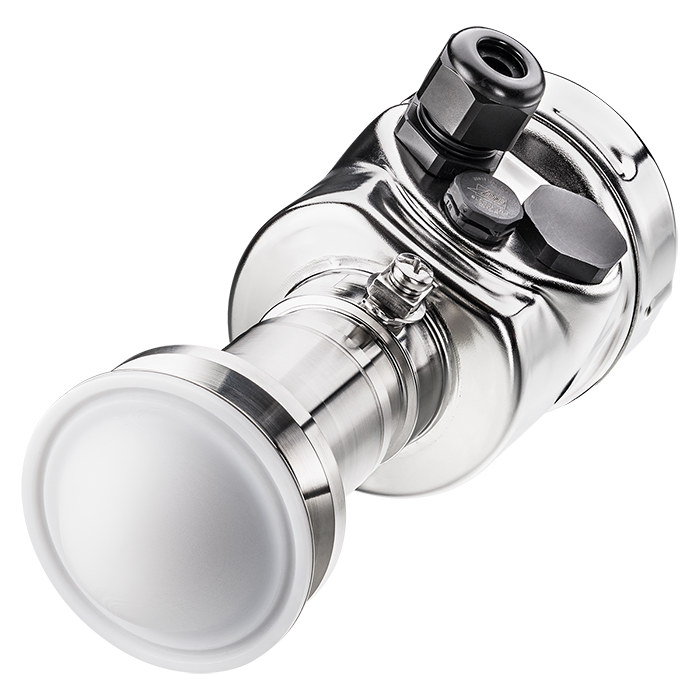

- Hygienic fitting with encapsulated antenna system
- PFA
- PTFE
- 316L
- Alloy C22 (2.4602)
- PEEK
- ≥ G¾, ≥ ¾ NPT
- ≥ DN50, ≥ 2"
- Clamp ≥ 2", DN50 - DIN32676, ISO2852
- Slotted nut ≥ 2", DN50 - DIN 11851
- DRD connection ø 65 mm
- for NEUMO BioControl D50 PN16 / 316L
- EPDM
- FKM
- FFKM
- Plastic
- Aluminium
- Stainless steel (precision casting)
- Stainless steel (electropolished)
- IP66/IP68 (0,2 bar)
- IP66/IP67
- IP66/IP68 (1 bar)
- Two-wire: 4 … 20 mA/HART
- -40 ... 80 °C
- ATEX / Europe
- FM / USA
- EAC (GOST) / Belarus
- EAC (GOST) / Kazakhstan
- EAC (GOST) / Russia
- IEC / worldwide
- NEPSI / China
- INMETRO / Brazil
- CCOE / India
- CSA / USA and Canada
- UKEX
- Intrinsic safety "i"
- Flameproof enclosure "d"
- Dust explosion protection through housing "t"
- 3A
- FDA
- EG1935/2004
- ABS
- CCS
- DNV
- GL
- KR
- LR
- NK
- RINA
- RMROS
- WHG
- VLAREM II
- PLICSCOM
- PC, PACTware and DTM
- HART-Communicator
- Software (e. g. AMS™, PDM)
- Display/adjustment module PLICSCOM
- VEGADIS 81
