VEGATOR 122

Double channel controller for level detection

Transmission of 8/16 mA signals for level signalling (double channel)

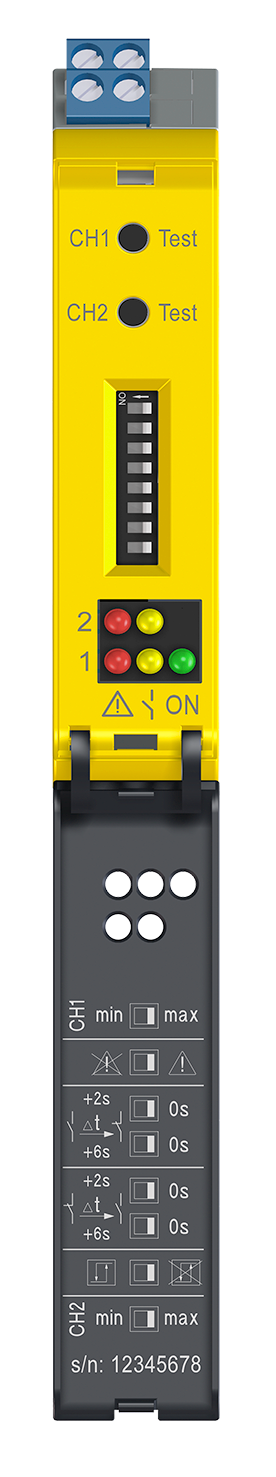

VEGATOR 122 - Double channel controller for level detection
VEGATOR 122
VEGATOR 122 - Double channel controller for level detection
VEGATOR 122

Application area

The VEGATOR 122 is a controller for level detection with relay output for the vibrating level switches VEGASWING, VEGAVIB and VEGAWAVE with electronics version "Two-wire 8/16 mA“. With this instrument simple control tasks can be solved. Typical applications are monitoring functions such as overflow or dry run protection.

Your benefit

  • Simple installation though carrier rail mounting as well as detachable, coded terminals
  • Comprehensive monitoring detects short circuit and open circuit of the measuring line and disturbances in the sensor
  • Simple and convenient function test by means of test button including automated evaluation (also for SIL and WHG)

Base price

CAD 1,165.00

Detailed information on prices and delivery times can be found in the Configurator.

Staggered Prices

Quantity Price
from 1 CAD 1,165.00
from 5 10 % Discount
from 10 Please contact us!
Configure & order

All documents and software for this product can be found in our Download Center.

Show all downloads
Application
Technical specifications
Documentation
Accessories
Configure product
Technical specifications
Protection rating
  • IP20
Input
  • 2 x sensor input two-wire 8/16 mA
Output
  • 2 x operating relay (SPDT)
Ambient temperature
  • -20 ... 60 °C
Signal input (specify)
  • Two-wire 8/16 mA
Signal output (specify)
  • Operating relay
Approvals
Scope
  • ATEX / Europe
  • CSA / Canada
  • FM / USA
  • IEC / worldwide
Explosion protection
  • Intrinsic safety "i"
  • Dust explosion protection through housing "t"
Overfill protection
  • WHG
SIL qualification
  • SIL2
Display & adjustment
Adjustment
  • DIP switch
Indication
  • LED
