Reservoir at the pumped storage power plant

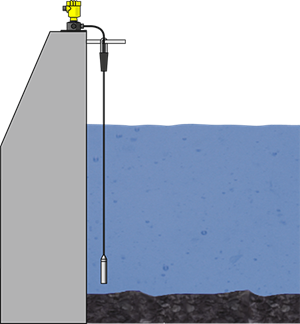

Level measurement at the reservoir

Reservoir at the pumped storage power plant
Reservoir at the pumped storage power plant
Hydrostatic

Process data

Measuring task:
Level measurement
Measuring point:
Basin, reservoir
Measuring range up to:
70 m
Medium:
Water
Process temperature:
0 … +25 °C
Process pressure:
0 … 0 bar
Special challenges:
Wind, weather, temperature changes, ice formation

Application

Pumped storage power plants store a large amount of energy and feed it into the grid very quickly when necessary. One important parameter is the height of the water level in the reservoir. It allows calculations to be made about the amount of energy available and the existing storage volume in pump operation mode. High reliability is required from the measurement technology deployed, because the sensors are often mounted at very remote locations.

Your benefit

Reliable
Ensures reliable efficient, optimal operation of the hydroelectric plant
Cost effective
Maintenance-free measurement
User friendly
Simple installation on existing structures

Recommended products


Real application example

In a current project, a natural alpine lake is being expanded and converted into a reservoir. The construction site, located at nearly 2,500 meters above sea level, has to be protected against flooding. To accomplish this, the level of the lake is constantly monitored during filling.
