Bank filtration
Level and pressure measurement of water from lake and river banks
|
|
Process data
Measuring task:
Level and pressure measurement
Measuring point:
Pump shaft
Measuring range up to:
10 m
Medium:
Water
Process temperature:
0 … +25 °C
Process pressure:
0 … +1 bar
Special challenges:
Mud, sand, lightning strikes
Application

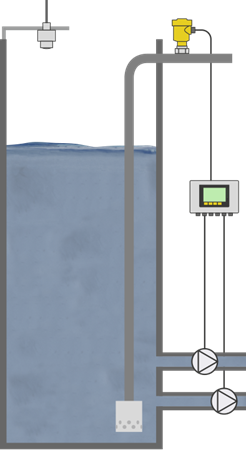

Water obtained from wells adjacent to lakes and rivers is called bank filtration. The flowing water constantly seeps through the riverbed and mixes with the ground water. The level of water must be constantly monitored for an optimum extraction of water. The pump pressure is also monitored in the delivery line.
Your benefit
Reliable
Reliable measurement independent of weather conditions
Cost effective
Maintenance-free operation
User friendly
Simple installation and setup
Recommended products
Solution 1
Solution 2
VEGAPULS C 21
Non-contact level measurement with radar for pump measurement
- Accurate level monitoring unaffected by internal fixtures
- Materials approved for drinking water ensure a long service life
- Reliable measurement ensures optimal water extraction
Measuring range - Distance
20 m
Process temperature
-40 ... 80 °C
Process pressure
-1 ... 3 bar
VEGABAR 82
Pressure transmitter for pump monitoring
- The water supply is secure thanks to reliable measurement
- Resistant to sand abrasion
- Monitoring of pump efficiency
Measuring range - Distance
-
Measuring range - Pressure
-1 ... 100 bar
Process temperature
-40 ... 150 °C
VEGAMET 861
Controller and display unit for pump control
- Universal controller for simple pump control
- Fast setup and commissioning thanks to simple menu navigation and application wizards
Protection rating
IP66/IP67, Type 4X
Input
1 x 4 … 20 mA/HART sensor input
2x digital input
Output
1 x 0/4 … 20 mA current output
1x failure relay (instead of operating relay)
4x operating relay
VEGAWELL 52
Hydrostatic pressure transmitter for water level measurement
- Reliable measurement ensures optimum water extraction
- High operational availability thanks to integrated overvoltage protection
Measuring range - Pressure
0 ... 60 bar
Process temperature
-20 ... 80 °C
Process pressure
-
VEGABAR 82
Pressure transmitter for pump monitoring
- The water supply is secure thanks to reliable measurement
- Resistant to sand abrasion
- Monitoring of pump wear
Measuring range - Distance
-
Measuring range - Pressure
-1 ... 100 bar
Process temperature
-40 ... 150 °C
VEGAMET 861
Sensor power, controller and display unit for pump control
- Universal controller for simple pump control
- Fast setup and commissioning thanks to simple menu navigation and application wizards
Protection rating
IP66/IP67, Type 4X
Input
1 x 4 … 20 mA/HART sensor input
2x digital input
Output
1 x 0/4 … 20 mA current output
1x failure relay (instead of operating relay)
4x operating relay
