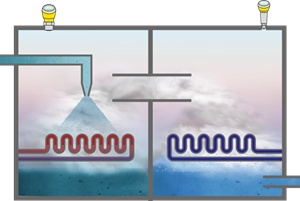

Evaporation chamber

Level and pressure measurement in multi-stage evaporation systems

Process data

Measuring task:
Level and pressure measurement
Measuring point:
Tank
Measuring range up to:
3 m
Medium:
Brine
Process temperature:
+30 …+50°C
Process pressure:
+0.5 … +1 bar
Special challenges:
Agitated surface, condensate, aggressive medium

Application

In thermal seawater desalination, the drinking water is produced in multi-stage evaporation processes. By connecting the various stages in series with ever lower temperatures, the system’s coefficient of performance is significantly increased and its overall efficiency enhanced. Reliable monitoring of the pressures and levels in the various stages is an important prerequisite for optimal operation of the plant.

Your benefit

Reliable
Reliable measurement ensures reliable operation of the plant
Cost effective
High plant efficiency thanks to precise measurement technology
User friendly
Maintenance and trouble free operation
