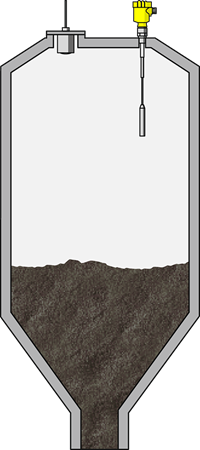

Sludge granulate silo
Level measurement and point level detection in the sludge granulate silo
|
|
Process data
Measuring task:
Level measurement and point level detection
Measuring point:
Silo
Measuring range up to:
3 … 8 m
Medium:
Sludge granulate
Process temperature:
+10 ... + 40 °C
Process pressure:
0 …2 bar
Special challenges:
Dust, buildup
Application
After thermal drying, the sludge is stored in silos for further use. The granulated product is deposed of in landfills, used in agriculture or burned for energy generation. The level measurement and point level detection ensure that the container volume is optimally utilized.
Your benefit
Reliable
Optimum protection against overfilling
Cost effective
Continuous measurement allows maximum use of container
User friendly
Reliable, maintenance-free operation
Recommended products
VEGAPULS C 23
Continuous radar level measurement of the sludge granulate silo
- Simple mounting and setup
- Unaffected by dust generation
- Maintenance free thanks to contactless measurement
- Wireless operation via Bluetooth with smartphone, tablet or PC
Measuring range - Distance
30 m
Process temperature
-40 ... 80 °C
Process pressure
-1 ... 3 bar
VEGACAP 65
Capacitive point level detection for filling control
- Reliable full-level signal during filling
- Robust mechanical design of sensor ensures a long service life
- Shortenable cable length for easy adaptation to local conditions
Measuring range - Distance
-
Process temperature
-50 ... 200 °C
Process pressure
-1 ... 64 bar
VEGATOR 141
Double channel signal conditioning instrument for level detection
- Simple adjustment of the switching point through a potentiometer
- Clearly visible switching status via LED
- Simple installation through carrier rail mounting as well as detachable, coded terminals
Protection rating
IP20
Input
1 x 4 … 20 mA sensor input
Output
1 x operating relay (SPDT)
Optionally 1 x fail safe relay output (SPDT)
