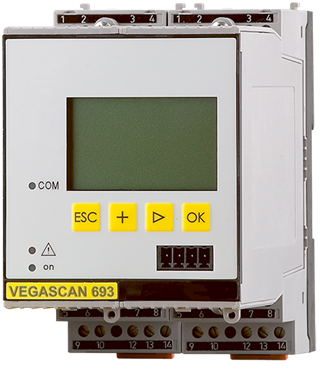

VEGASCAN 693

Controller for up to 15 HART sensors

Measured value indication and remote enquiry of measured data for up to 15 HART sensors


VEGASCAN 693

Application area

The VEGASCAN 693 is a controller and display instrument for up to 15 HART sensors. It processes the measured values received via HART multidrop and displays the values. Hence measurement results from level, gauge and process pressure measurements can be easily made available to control systems, visualizations and the remote data transmission. Interfaces and functions for the connection to networks and the remote data transmission are integrated. It is particularly suitable for applications in the local and global inventory management.

Your benefit

  • Data recording of up to 200,000 measured values ​​for devices with digital interface
  • Simple integration into the Intranet/Extranet through integrated Web server
  • Measured value and message transmission via e-mail and SMS and data transmission to WEB-VV

Configure product

Configure product

All documents and software for this product can be found in our Download Center.

Show all downloads
Application
Technical specifications
Documentation
Accessories
Configure product
Technical specifications
Protection rating
  • IP20/IP30
Input
  • up to 15 HART-capable sensors
  • up to 5 sensors with Ex applications (with transmitter power supply and passive)
Output
  • 1 x fail safe relay
  • 1 x Ethernet or 1 x RS232
Ambient temperature
  • -20 ... 60 °C
Measured value memory
  • Measured value memory
Approvals
Scope
  • ATEX / Europe
  • CSA / Canada
  • FM / USA
  • EAC (GOST) / Belarus
  • EAC (GOST) / Russia
  • IEC / worldwide
  • UKR Sepro / Ukraine
Explosion protection
  • Intrinsic safety "i"
  • Dust explosion protection through housing "t"
Ship approval
  • ABS
  • CCS
  • DNV
  • GL
  • LR
  • RINA
Display & adjustment
Adjustment
  • PACTware/DTM
  • On-site adjustment
Indication
  • LCD matrix display, black and white
