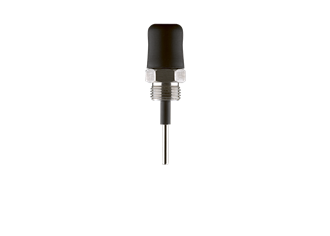

EL 8
Conductive rod probe
Rod electrodes with PE insulation
EL 8
Application area
Rod electrode with a rod up to 3 m long. A VEGATOR 130 series controller is required for operation.
The rod electrode EL 8 is a universal level switch for conductive liquids. The instrument is ideal as overfill or dry run protection in conjunction with VEGATOR 131 or VEGATOR 132 controllers.
Your benefit
- Simple installation in narrow space applications through small sensor dimensions
- Price-favourable level detection
- Economical pump control through multiple cable probe
Configure product
Configure productProduct comparison
Select several products to compare with each other.
Technical specifications
Documentation
Accessories
Configure product
Technical specifications
Measuring range - Distance
- - [Meter - Foot]
Process temperature
- -10 ... 60 °C [°C - °F]
Process pressure
- -1 ... 6 bar [Bar - kPa - psi]
Version
- with 1 rod electrode
Materials, wetted parts
- 316Ti (1.4571)
- PE
Threaded connection
- G½
Seal material
- no media contact
Housing material
- Plastic
Protection rating
- IP50
Output
- For connection to a controller
Ambient temperature
- -40 ... 80 °C
