VEGAPOINT 23

Compact capacitive limit switch with tube extension

For the detection of water-based liquids

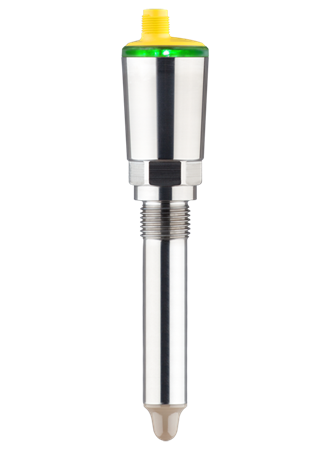

VEGAPOINT 23 - Compact capacitive limit switch with tube extension
VEGAPOINT 23

Application area

From DK > 1.5, from thread ½", universal connection G1" for hygiene adapter, M12, valve plug, transistor output, IO-Link, wireless operation, Ex and hygiene approvals, tube version, up to 1 m
VEGAPOINT 23 is a limit switch with remote switching point for detection of water-based liquids. The optional universal connection for hygiene adapters ensures reduced installation effort and leaner stock keeping and perfectly meets the requirements for hygienic processes in the food, beverage and pharmaceutical industries. It can be used without adjustment in the application. With IO-Link, it offers continuous digital data transmission.

Your benefit

  • Coloured 360° status display, adjustable
  • Easy integration into control systems through IO-Link communication
  • Low-cost limit switch with selectable switching point position / tube extension

Suitable accessories

Lock fitting VEGAPOINT 23
Further accessories

Base price

रु 29,000.00

Detailed information on prices and delivery times can be found in the Configurator.

Staggered Prices

Quantity Price
from 1 रु 29,000.00
from 5 10 % Discount
from 10 Please contact us!
Configure & order

All documents and software for this product can be found in our Download Center.

Show all downloads
Application
Technical specifications
Documentation
Accessories
Configure product

Other applications

Pump room

Pump room

Pressure monitoring and flood protection in the pump room

To the application

Storage container for rennet

Level measurement and point level detection in the storage container

Level measurement and point level detection in the storage container

To the application

Wort kettle

Pressure and point level measurement in the wort kettle and in the hops dissolver

Pressure and point level measurement in the wort kettle and in the hops dissolver

To the application

Batching tank for milk cultures

Level measurement and point level detection in the batching tank

Level measurement and point level detection in the batching tank

To the application
Technical specifications
Measuring range - Distance
  • - [Meter - Foot]
Process temperature
  • -40 ... 115 °C [°C - °F]
Process pressure
  • -1 ... 64 bar [Bar - kPa - psi]
Materials, wetted parts
  • 316L
  • PEEK
Threaded connection
  • ≥ G½, ≥ ½ NPT
Hygenic fittings
  • Clamp ≥ 2", DN50 - DIN32676, ISO2852
  • Clamp ≥ 1" - DIN32676, ISO2852
  • Clamp ≥ 1½" - DIN32676, ISO2852
  • Slotted nut ≥ 1½", ≥ DN40 - DIN 11851
  • Slotted nut ≥ DN25 - DIN 11851
  • Slotted nut ≥ DN32 - DIN 11851
Seal material
  • EPDM
  • FKM
Protection rating
  • IP66/IP67
  • IP69
Output
  • Transistor (NPN/PNP)
  • IO-Link
Ambient temperature
  • -40 ... 70 °C
Approvals
Scope
  • ATEX / Europe
  • IEC / worldwide
  • KOSHA / Korea
  • NEPSI / China
  • UKR Sepro / Ukraine
  • INMETRO / Brazil
  • KTL Korea
  • CSA / USA and Canada
  • CCC
  • IA
  • UKEX
Explosion protection
  • Dust explosion protection through housing "t"
  • Increased safety "e"
Foodstuffs/Pharma
  • FDA
  • EG1935/2004
Ship approval
  • ABS
  • BV
  • CCS
  • DNV
  • LR
  • NK
Overfill protection
  • WHG
  • VLAREM II
Display & adjustment
Adjustment
  • Smartphone / Tablet / PC via Bluetooth
  • PC, PACTware and DTM, IODD
Indication
  • 360° status display

Drawing generator
