VEGAWELL S51

With ceramic measuring cell, standard level probe
VEGAWELL S51
VEGAWELL S51
VEGAWELL S51

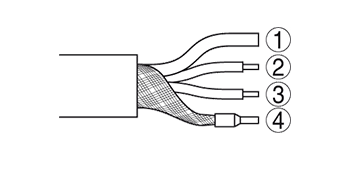

(1) Breather capillaries with filter element (2) brown (+): Voltage supply and signal output (3) blue (-): Voltage supply and signal output (4) Screen

Application area

Output signal 4 ... 20 mA, PE suspension cable, available measuring ranges: Relative pressure 0.1 / 0.2 / 0.4 / 1 / 2.5 bar, Sensor length depends on measuring range
The VEGAWELL S 51 is suitable for continuous level measurement of liquids, particularly for gauge measurement in water basins, waste water shafts, deep wells and applications on ships. The VEGAWELL S 51 is an economical solution through its versatile and simple mounting options.

Base price

€ 436.00

Detailed information on prices and delivery times can be found in the Configurator.

Staggered Prices

Quantity Price
from 1 € 436.00
from 5 10 % Discount
from 10 Please contact us!
Configure & order

All documents and software for this product can be found in our Download Center.

Show all downloads
Application
Technical specifications
Documentation
Accessories
Configure product

Application area

Application
VEGAWELL S 51 is designed for measurement of liquids in open vented vessels, tanks, boreholes and sumps, especially in applications when foam is on the surface. The rugged measuring cell and special construction means that the sensor is largely resistant to pressure shocks that can occur during installation. It can be teamed up with VEGAMET 381 which can provide power, a calibrated output, a display, 2 relay switch points and fault relay.
Technical specifications
Measuring range - Pressure
  • 0 ... 25 bar [Bar - kPa - psi]
Process temperature
  • -20 ... 60 °C [°C - °F]
Accuracy
  • 0.2 %

Operating instructions

VEGAWELL S 51

4 … 20 mA

    • EN
    • DE
    • ES
    • FR
Download

Further downloads for this product

All documents and software for this product can be found in our Download Center.

Show all downloads
Accessory

Straining clamp

Straining clamps are used for height-adjustable fastening of sensors on the own cable

Show Product

VEGABOX 02

The VEGABOX 02 is a breather housing for pressure transmitters VEGAWELL 52 and VEGAWELL 72.

Show Product

Screw connection for suspension cable

The screw connection for suspension cable is used for installation and height adjustment.

Show Product
