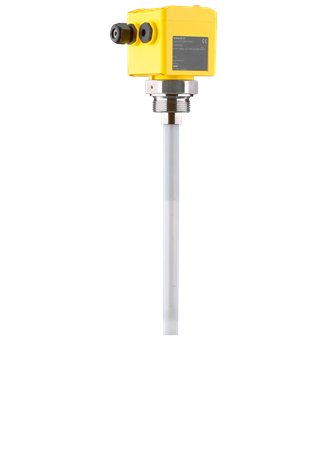

VEGACAP 27

Adjustment-free, capacitive rod probe for level detection of adhesive products

Rod probe, fully PTFE or PFA insulated


VEGACAP 27 - Adjustment-free, capacitive rod probe for level detection of adhesive products
VEGACAP 27

Application area

For liquids, also in non-conductive containers, Sensor length up to 4 m
The VEGACAP 27 is an adjustment-free, capacitive level sensor for liquids. Typical applications are overfill and dry run protection for adhesive as well as conductive liquids. The probe operates in liquids with a dielectric constant from 1.5.

Your benefit

  • Long lifetime and low maintenance requirement through robust mechanical construction
  • Minimum time and cost expenditure thanks to simple setup without medium
  • Exact switching point even with strong buildup

Configure product

Configure product

All documents and software for this product can be found in our Download Center.

Show all downloads
Application
Technical specifications
Documentation
Accessories
Configure product
Technical specifications
Measuring range - Distance
  • - [Meter - Foot]
Process temperature
  • -50 ... 200 °C [°C - °F]
Process pressure
  • -1 ... 63 bar [Bar - kPa - psi]
Version
  • PTFE insulation
Materials, wetted parts
  • PTFE
  • 316Ti (1.4571)
  • Steel
Threaded connection
  • ≥ G1, ≥ 1 NPT
Hygenic fittings
  • Clamp ≥ 2", DN50 - DIN32676, ISO2852
  • Clamp ≥ 1½" - DIN32676, ISO2852
  • Slotted nut ≥ 2", DN50 - DIN 11851
Seal material
  • no media contact
Housing material
  • Plastic
  • Aluminium
Protection rating
  • IP66/IP67
Output
  • Relay (DPDT)
Ambient temperature
  • -40 ... 80 °C
Approvals
Overfill protection
  • WHG
Display & adjustment
Adjustment
  • Adjustment
Indication
  • Indication
