EL 3

Conductive multiple rod electrode

Rod electrodes with PTFE insulation

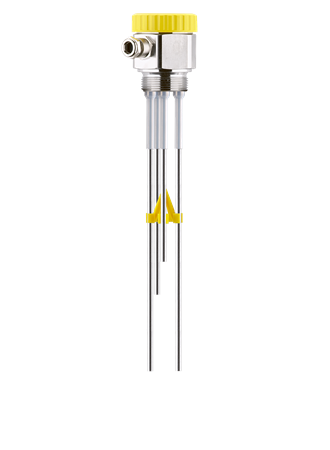

EL 3 - Conductive multiple rod electrode
EL 3

Application area

With 2 to 5 rods, a corresponding number of switching points between 5 cm and 6 m can be realized. Extended temperature range through PTFE insulation. A VEGATOR 130 series controller is required for operation.
The multiple rod electrode EL 3 is a universal level switch for conductive liquids. The instrument is ideal as overfill and dry run protection or pump control in conjunction with VEGATOR 132 controllers.

Your benefit

  • Simple setup with minimum time and cost expenditure
  • High flexibility through shortenable probe
  • Maintenance-free through robust design

Configure product

Configure product

All documents and software for this product can be found in our Download Center.

Show all downloads
Application
Technical specifications
Documentation
Accessories
Configure product
Technical specifications
Measuring range - Distance
  • - [Meter - Foot]
Process temperature
  • -50 ... 130 °C [°C - °F]
Process pressure
  • -1 ... 63 bar [Bar - kPa - psi]
Version
  • with 2 rod electrodes
  • with 3 rod electrodes
  • with 4 rod electrodes
  • with 5 rod electrodes
Materials, wetted parts
  • PTFE
  • 316Ti (1.4571)
  • Alloy C4 (2.4610)
Threaded connection
  • G1½
Seal material
  • no media contact
Housing material
  • Stainless steel (precision casting)
Protection rating
  • IP66/IP67
Output
  • For connection to a controller
Ambient temperature
  • -40 ... 80 °C
Approvals
Scope
  • ATEX / Europe
  • EAC (GOST) / Belarus
Explosion protection
  • Intrinsic safety "i"
Overfill protection
  • WHG
