VEGAVIB S61

Vibrating level switch for granular bulk solids

For granulated bulk solids from density 100 g/l
VEGAVIB S61 - Vibrating level switch for granular bulk solids
VEGAVIB S61 - Vibrating level switch for granular bulk solids
VEGAVIB S61 - Vibrating level switch for granular bulk solids
Electronic „R“ - Relais (DPDT)
VEGAVIB S61 - Vibrating level switch for granular bulk solids
Electronic „T“ - Transistor (NPN/PNP)

Application area

Pre-configured lengths of 150, 500, 1000 or 1500 mm available. Limited choice of electronics and approvals.
The VEGAVIB S61 is a level switch for granular and coarse-grained bulk solids. The VEGAVIB S61 detects reliably and accurately the min. or max. level. The smooth surface of the vibrating rod, without corners and edges, avoids jamming of the bulk solid and is easy to clean.

Base price

kr 4,494.00

Detailed information on prices and delivery times can be found in the Configurator.

Staggered Prices

Quantity Price
from 1 kr 4,494.00
from 5 10 % Discount
from 10 Please contact us!
Configure & order

All documents and software for this product can be found in our Download Center.

Show all downloads
Application
Technical specifications
Documentation
Accessories
Configure product

Application area

Application
VEGAVIB S 61 is used as a level switch in free flowing powders, granulates and coarse grained solids and detects reliably and accurately when a point level is reached. The optimum rod design avoids jamming and buildup of bulk solid material. It is ideal as a high or low level switch in a vessel detecting foodstuffs, perishable or granulate materials which could be retained in a fork solids level probe.
Technical specifications
Measuring range - Distance
  • - [Meter - Foot]
Process temperature
  • -50 ... 150 °C [°C - °F]
Process pressure
  • -1 ... 16 bar [Bar - kPa - psi]
Version
  • Standard
Materials, wetted parts
  • 316L
Threaded connection
  • ≥ G1, ≥ 1 NPT
Seal material
  • no media contact
Housing material
  • Plastic
Protection rating
  • IP66/IP67
Output
  • Relay (DPDT)
  • Transistor (NPN/PNP)
Ambient temperature
  • -40 ... 80 °C
Approvals
Scope
  • ATEX / Europe
Explosion protection
  • Dust explosion protection through housing "t"
Display & adjustment
Indication
  • LED

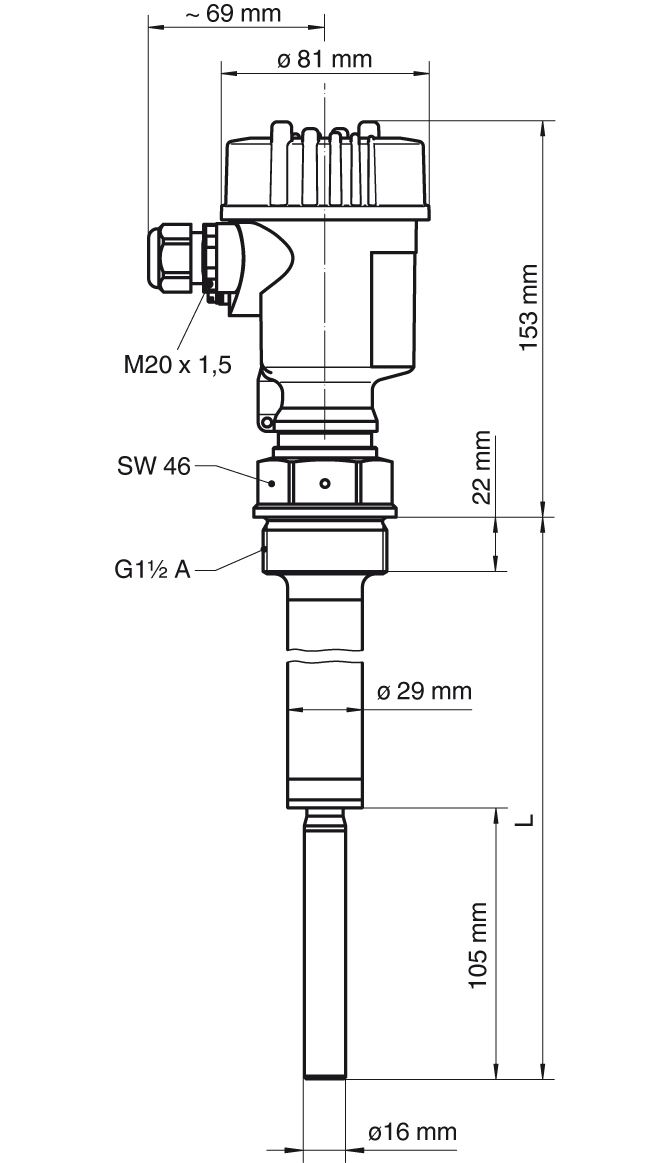

Drawing generator
