VEGAPULS 11

Compact radar sensor for continuous level measurement

For simple measuring tasks, plastic housing IP66/IP67, Type 4X


VEGAPULS 11 - Compact radar sensor for continuous level measurement
VEGAPULS 11

Application area

4 ... 20 mA output, measuring range up to 10 m, accuracy ±5 mm
VEGAPULS 11 is the ideal sensor for non-contact level measurement of liquids and bulk solids in simple applications. It is particularly suitable for use in water treatment, storage tanks with acids, lyes and additives in all industrial areas, or for measuring levels in plastic tanks from the outside through the tank wall. In bulk solids the sensors are used in small bulk solids silos or open containers.

Your benefit

  • High plant availability through non-contact measurement
  • Exact measurement results independent of medium properties and process conditions
  • Maintenance-free operation due to non-contact 80 GHz radar technology

Suitable accessories

Mounting bracket with adjustable sensor holder

Mounting angle with adjustable bracket

Universal flange for VEGAPULS BASIC line
Further accessories

Base price

€ 560.00

Detailed information on prices and delivery times can be found in the Configurator.

Staggered Prices

Quantity Price
from 1 € 560.00
from 5 10 % Discount
from 10 Please contact us!
Configure & order

All documents and software for this product can be found in our Download Center.

Show all downloads
Application
Technical specifications
Documentation
Accessories
Configure product

Other applications

Gravel bed filter

Differential pressure and level measurement in a gravel filter

Differential pressure and level measurement in a gravel filter

To the application

Process water tank

Füllstandmessung im Betriebswasserbehälter

Level measurement in the process water tank

To the application
Technical specifications
Measuring range - Distance
  • 10 m [Meter - Foot]
Process temperature
  • -40 ... 60 °C [°C - °F]
Process pressure
  • -1 ... 3 bar [Bar - kPa - psi]
Accuracy
  • ± 5 mm / ± 0.2"
Frequency
  • 80 GHz
Beam angle
  • 8°
Materials, wetted parts
  • PVDF
Threaded connection
  • G1½, 1½ NPT, R1½
Seal material
  • FKM
Housing material
  • Plastic
Protection rating
  • IP66/IP67, Type 4X
Output
  • 4 … 20 mA
Ambient temperature
  • -40 ... 60 °C
Display & adjustment
Adjustment
  • PC, PACTware and DTM
  • Smartphone / Tablet / PC via Bluetooth

Drawing generator

Generate 2D and 3D drawings for your specific configuration.

Configure Now

Product catalog

Radar

    • EN
    • DE
    • CS
    • ES
    • FR
    • IT
    • NL
    • PL
    • PT
    • TR
    • ZH
Download

Product information

VEGAPULS C 11, C 21, C 22, C 23, 11, 21, 31

    • EN
    • US
    • DE
    • DA
    • ES
    • FR
    • IT
    • NL
    • PL
    • PT
    • SV
    • TR
    • ZH
Download

Specification sheet

VEGAPULS 11

Two-wire: 4 … 20 mA

    • EN
    • US
    • DE
    • CS
    • DA
    • ES
    • FI
    • FR
    • HU
    • IT
    • KK
    • KO
    • NL
    • NO
    • PL
    • PT
    • SV
    • TR
    • UK
    • ZH
Download

Operating instructions

VEGAPULS 11

Two-wire: 4 … 20 mA

    • EN
    • DE
    • CS
    • DA
    • ES
    • FI
    • FR
    • HU
    • IT
    • KK
    • KO
    • NL
    • NO
    • PL
    • PT
    • SV
    • TR
    • UK
    • ZH
Download

Drawing generator

Generate 2D and 3D drawings for your specific configuration.

Configure Now

Further downloads for this product

All documents and software for this product can be found in our Download Center.

Show all downloads
Accessory
Controllers
Indicating instruments
Separating instruments

Mounting bracket with adjustable sensor holder

€ 82.00

Base price

Show Product

Mounting angle with adjustable bracket

€ 140.00

Base price

Show Product

Mounting bracket 200 mm with fixed sensor holder

€ 69.00

Base price

Show Product

Hygienic adapter (G1½“) suitable for VEGAPULS 11, 21, 31, VEGAPULS C 11, C 21, C 22 and VEGAPULS Air 41

No image available

€ 99.00

Base price

Show Product

Counter nut

Gegenmutter

Show Product

Universal flange for VEGAPULS BASIC line

€ 96.00

Base price

Show Product

Alignment device for vessel wall mounting for radar sensors with 1½" thread

€ 150.00

Base price

Show Product

Threaded adapter 2" to 1½" suitable for VEGAPULS 11, 21, 31, VEGAPULS C 11, C 21, C 22 and VEGAPULS Air 41

€ 55.00

Base price

Show Product

VEGAMET 141

1 x 4 … 20 mA sensor input, 1 x 4 … 20 mA current output, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation

€ 430.00

Base price

Show Product

VEGAMET 142

2 x 4 … 20 mA sensor inputs, 2 x 4 … 20 mA current outputs, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation

€ 550.00

Base price

Show Product

VEGAMET 341

1 x 4 … 20 mA sensor input, 1 x 4 … 20 mA current output, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation

€ 460.00

Base price

Show Product

VEGAMET 342

2 x 4 … 20 mA sensor inputs, 2 x 4 … 20 mA current outputs, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation

€ 590.00

Base price

Show Product

VEGAMET 841

1 x 4 ... 20 mA sensor input, 1 x 4 ... 20 mA current output, 3 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation

€ 500.00

Base price

Show Product

VEGAMET 842

2 x 4 ... 20 mA sensor inputs, 2 x 4 ... 20 mA current outputs, 3 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation

€ 630.00

Base price

Show Product

VEGAMET 861

1 x 4 ... 20 mA/HART sensor input, 2 x digital inputs, 1 x 4 ... 20 mA current output, 4 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation

€ 700.00

Base price

Show Product

VEGAMET 862

2 x 4 ... 20 mA/HART sensor inputs, 4 x digital inputs, 3 x 4 ... 20 mA current outputs, 6 x operating relays, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation

€ 840.00

Base price

Show Product

VEGAMET 391

VEGAMET391 Auswertgeraet und Anzeigeinstrument fuer Fuellstandsensoren

Measured value indication, simple control functions, remote enquiry of measured data. optimized for water/sewage water industry

Show Product

VEGATOR 141

Single channel signal conditioning instrument for level detection - 4 … 20 mA

Transmission of 4 ... 20 mA signals for level signalling

€ 240.00

Base price

Show Product

VEGATOR 142

Double channel signal conditioning instrument for level detection - 4 … 20 mA

Transmission of 4 ... 20 mA signals for level signalling

€ 340.00

Base price

Show Product

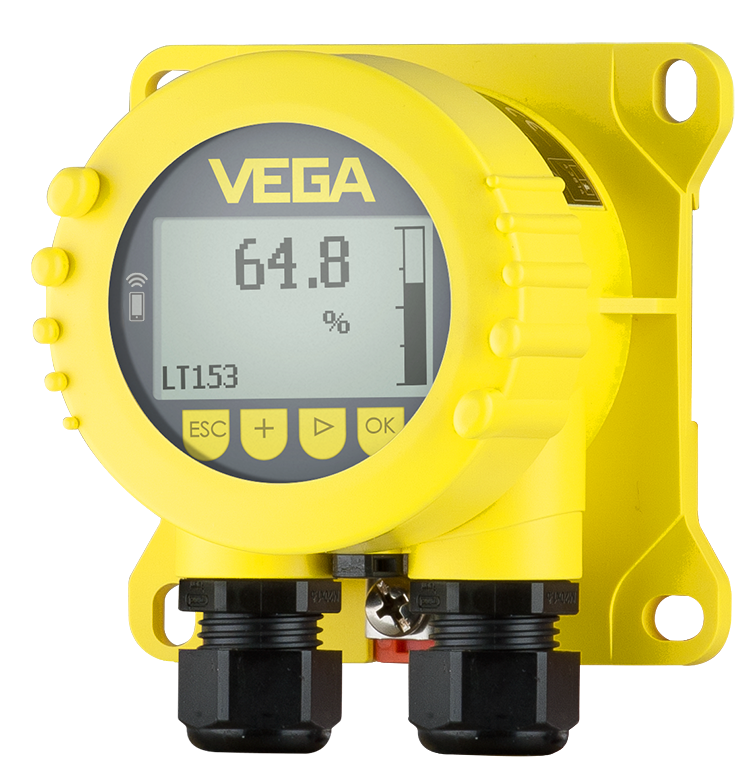

VEGADIS 82

External measured value display and adjustment for 4 ... 20 mA/HART sensors

€ 250.00

Base price

Show Product

VEGADIS 176

Remote display for use in 4 ... 20 mA current loop

€ 230.00

Base price

Show Product

VEGAMET 841

1 x 4 ... 20 mA sensor input, 1 x 4 ... 20 mA current output, 3 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation

€ 500.00

Base price

Show Product

VEGAMET 842

2 x 4 ... 20 mA sensor inputs, 2 x 4 ... 20 mA current outputs, 3 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation

€ 630.00

Base price

Show Product

VEGAMET 861

1 x 4 ... 20 mA/HART sensor input, 2 x digital inputs, 1 x 4 ... 20 mA current output, 4 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation

€ 700.00

Base price

Show Product

VEGAMET 862

2 x 4 ... 20 mA/HART sensor inputs, 4 x digital inputs, 3 x 4 ... 20 mA current outputs, 6 x operating relays, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation

€ 840.00

Base price

Show Product

VEGATRENN 141

Einkanaliger Speisetrenner für 4 … 20 m/HART-Sensoren

Single channel separator for 4 … 20 m/HART sensors

€ 160.00

Base price

Show Product

VEGATRENN 142

Zweikanaliger Speisetrenner für 4 … 20 m/HART-Sensoren

Double channel separator for 4 … 20 m/HART sensors

€ 230.00

Base price

Show Product

VEGATRENN 151

Einkanaliger Trennübertrager in Zweileitertechnik für 4 … 20 mA-Sensoren

Single channel separator in two-wire technology for 4 … 20 mA sensors

€ 140.00

Base price

Show Product

VEGATRENN 152

Zweikanaliger Trennübertrager in Zweileitertechnik für 4 … 20 mA-Sensoren

Double channel separator in two-wire technology for 4 … 20 mA sensors

€ 200.00

Base price

Show Product
