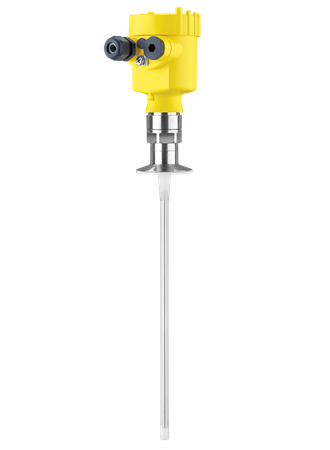

VEGAFLEX 83
TDR sensor for continuous level and interface measurement of liquids
For aggressive media or extremely high hygienic requirements
|
|
Application area
Your benefit
- The gap-free hygienic design ensures simple and reliable cleanability
- The maintenance-free operation increases the plant efficiency
- The guided adjustment enables a simple, time-saving and reliable setup
Configure product
Product comparison
All documents and software for this product can be found in our Download Center.
Show all downloadsGuided radar level sensor for sterile containers and hygienic applications
The VEGAFLEX 83 guided radar level sensor is a special probe for hygienically sensitive liquids, e.g. for:
- Level measurement in a ketchup mixer
- Level measurement in milk tanks
- Level measurement in acid containers
- 32 m [Meter - Foot]
- -40 ... 150 °C [°C - °F]
- -1 ... 16 bar [Bar - kPa - psi]
- ± 2 mm
- Rod ø 10 mm, PFA-coated
- Exchangeable rod ø 8 mm, polished
- Exchangeable rod ø 8 mm, electropolished
- Exchangeable rod ø 8 mm, electropolished, can be autoclaved
- Cable ø 4 mm with gravity weight, PFA-coated
- PFA
- 316L
- TFM-PTFE
- ≥ DN25, ≥ 1"
- Clamp ≥ 2", DN50 - DIN32676, ISO2852
- Clamp ≥ 3", DN65 - DIN32676, ISO2852
- Slotted nut ≥ 1½", ≥ DN40 - DIN 11851
- Slotted nut ≥ 2", DN50 - DIN 11851
- Varivent ≥ DN25
- Hygienice flange connection ≥ DN50 DIN11864-2
- Swagelok VCR screwing
- Hygienic collar clamp ≥ DN33 - DIN 11864-3
- Safety ingold
- EPDM
- FKM
- FEPM
- Plastic
- Aluminium
- Stainless steel (precision casting)
- Stainless steel (electropolished)
- IP66/IP68 (0,2 bar)
- IP66/IP67
- IP66/IP68 (1 bar)
- Profibus PA
- Foundation Fieldbus
- Two-wire: 4 … 20 mA/HART
- Modbus
- Four-wire: 4 … 20 mA/HART
- -40 ... 80 °C
- ATEX / Europe
- CSA / Canada
- FM / USA
- EAC (GOST) / Belarus
- EAC (GOST) / Kazakhstan
- EAC (GOST) / Russia
- IEC / worldwide
- NEPSI / China
- UKR Sepro / Ukraine
- INMETRO / Brazil
- CCOE / India
- UKEX
- Intrinsic safety "i"
- Flameproof enclosure "d"
- Dust ignition protection "t"
- EHEDG
- FDA
- WHG
- VLAREM II
- SIL2
- PLICSCOM
- PC, PACTware and DTM
- HART-Communicator
- Software (e. g. AMS™, PDM)
- Display/adjustment module PLICSCOM
- VEGADIS 81
- VEGADIS 82
