VEGAPULS WL S 61
Radar sensor for standard liquid measuring tasks in all areas of industry
The low-cost radar sensor with Bluetooth technology
Radar is the technology of choice in many level measurement applications. While ultrasonic sensors were commonly used in the past, the advantages of radar are so convincing, plant operators now prefer to use radar sensors instead. The VEGAPULS WL S 61 ensures a continuous, maintenance-free operation in standard liquid applications.”
The low-cost radar sensor with Bluetooth technology
Quick Facts

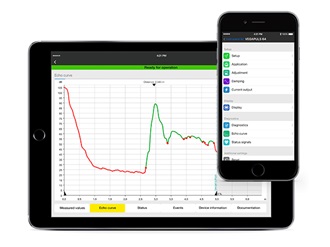

- Wireless Bluetooth setup and adjustment
- Can be used outdoors without restriction (LPR Standard)
- Non-contact sensor for level and flow measurements
- Measurement unaffected by weather conditions
- Flood-proof housing with IP 66/68 (2 bar) protection rating
Common Applications

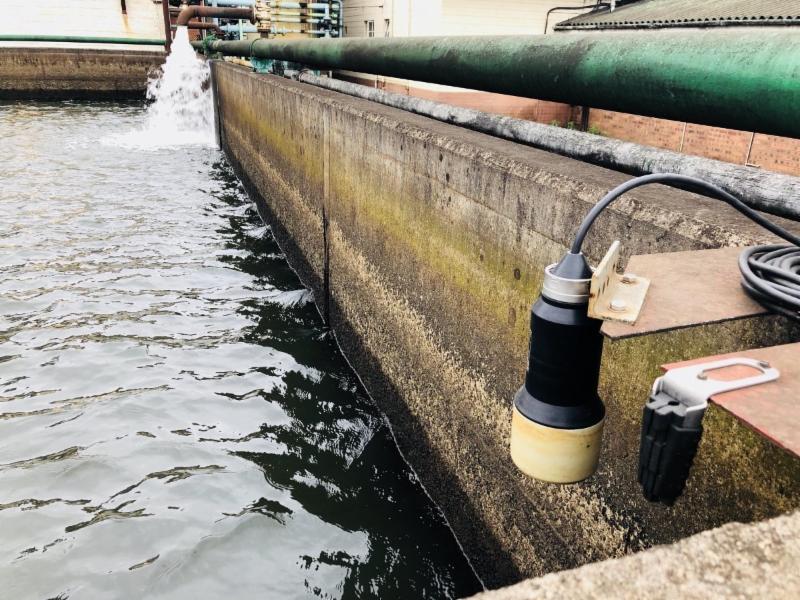

Poly vessel Open channel flow IBC tank

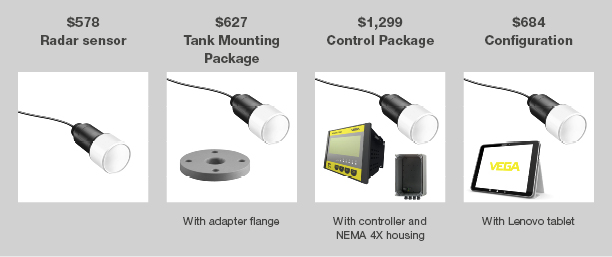

Package Options
Technical data
| Measuring range---Distance | 8 m |
| Process temperature | -40...60°C |
| Process pressure | -1...2 bar |
| Accuracy |
±5mm / ±0.2" |
| Version | With plastic horn antenna ø 75mm |
| Materials, wetted-parts | PP/PBT/Silicone |
| Threaded connection | G11/2 |
| Housing material | Plastic |
| Protection rating | IP 68 (2 bar) |
| Output | 4...20 mA |
| Ambient temperature | -40...80°C |
Ready to order?
Click the link below to order your reliable radar today.
Order formNot sure which package is right for you?
Contact Chris Reckers, a member of our inside sales team, who can help answer your technical questions.
- Phone: 513-272-0131
- Email: c.reckers@vega.com
