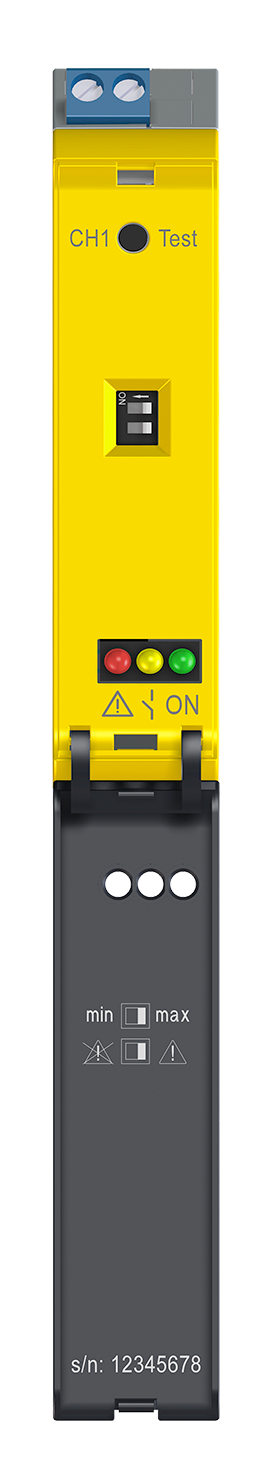

VEGATOR 111

Single channel controller acc. to NAMUR (IEC 60947-5-6) for level detection

Transmission of NAMUR signals for level signalling (single channel)
VEGATOR 111 - Single channel controller acc. to NAMUR (IEC 60947-5-6) for level detection
VEGATOR 111
VEGATOR 111 - Single channel controller acc. to NAMUR (IEC 60947-5-6) for level detection
VEGATOR 111

Application area

The VEGATOR 111 is a controller for level detection with relay output for vibrating level switches VEGASWING, VEGAVIB and VEGAWAVE with electronics version according to NAMUR (IEC 60947-5-6). With this instrument, simple control tasks can be solved. Typical applications are monitoring functions such as overflow or dry run protection. Also for use as part of overfill protections. Optionally a false signal output is available.

Your benefit

  • Simple and comfortable function test by means of test key (also for SIL and WHG)
  • Simple installation though carrier rail mounting as well as detachable, coded terminals
  • Comprehensive monitoring detects short circuit and open circuit of the measuring line and disturbances in the sensor

Base price

$ 185.00

Detailed information on prices and delivery times can be found in the Configurator.

Staggered Prices

Quantity Price
from 1 $ 185.00
from 5 10 % Discount
from 10 Please contact us!
Configure & order

All documents and software for this product can be found in our Download Center.

Show all downloads
Application
Technical specifications
Documentation
Accessories
Configure product
Technical specifications
Protection rating
  • IP20
Input
  • 1 x sensor input NAMUR (IEC 60947-5-6)
Output
  • 1 x operating relay (SPDT)
  • Optionally 1 x fail safe relay output (SPDT)
Ambient temperature
  • -20 ... 60 °C
Signal input (specify)
  • Two-wire NAMUR
Signal output (specify)
  • Operating relay
  • Fail safe relay
Approvals
Scope
  • ATEX / Europe
  • CSA / Canada
  • FM / USA
  • IEC / worldwide
Explosion protection
  • Intrinsic safety "i"
  • Dust explosion protection through housing "t"
Overfill protection
  • WHG
SIL qualification
  • SIL2
Display & adjustment
Adjustment
  • DIP switch
Indication
  • LED
