Ultrasonic was yesterday – the future is radar!

Compact level sensors with 80 GHz radar technology provide reliable measurement results under all conditions.

Advantages of radar technology compared to ultrasonic sensors

Where ultrasonic level measurement reaches its limits

Compared to ultrasonic measuring instruments, radar sensors measure unaffected by temperature fluctuations, vacuum or high pressures and are insensitive to contamination. 80 GHz radar sensors also convince with very good signal focusing. This makes it easier to separate measurement and interference signals - the measurement is much easier and more accurate.

Process and ambient influences

Radar sensors are unaffected by temperature, pressure or vacuum and provide correct readings under all environmental conditions.
Read more ...

Due to their physical measuring principle, ultrasonic sensors are exposed to considerable influences because the sound running time changes with temperature, e.g. due to solar radiation and gas composition. Even in heavy fog, wind or rain, the sound waves are additionally attenuated and the measuring range further restricted.

Dead zone and floodability

Radar sensors allow a safe measurement up to the sensor antenna, even in case of flooding.
Read more ...

Due to the process, flooding of the sensors occurs in some applications. Ultrasonic sensors are therefore often protected by mechanical flooding sleeves. However, such components can easily become contaminated and impair the reliability of the measurement. Radar sensors have no dead zone, do not require protective sleeves and measure reliably even in case of flooding.

Contamination and condensation

Radar sensors are insensitive to contamination and do not need to be cleaned.
Read more ...

In many applications, sensors struggle with buildup. Especially with ultrasonic sensors, this influences the reliability of the measurement signal and increases the dead zone. Thanks to optimized signal processing, radar sensors can suppress interference caused by buildup on the antenna system.

Reliability and accuracy

Radar sensors can also be used in confined spaces and installations.
Read more ...

Due to the high focusing of the 80 GHz technology, the radar beam can be aligned almost precisely to the medium to be measured. This means that there are no interference signals even with installations such as pipes or pumps, in narrow shafts or with deposits on walls. Compared to ultrasonic sensors, no interference signal suppression is necessary.

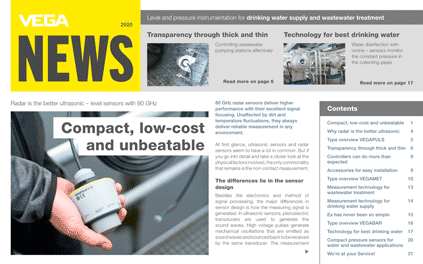

Our digital newspaper

Get to know the ePaper format. Learn everything about level and pressure measurement technology in drinking water supply systems and wastewater treatment and why radar is the better ultrasonic.
VEGA NEWS as a digital newspaper:

  • Integrated 3D animations and application solutions
  • Interactive elements and links to YouTube videos
  • All technical data and drawings of the sensors

Read now

Reliable measurement of liquids and bulk solids

Radar level sensors measure the level of liquids and bulk solids contactlessly, e.g. in containers with alkalis, acids or auxiliary substances and in small bulk solids silos, or in plastic tanks, in which case the sensor can be mounted on the outside.

Open stockpiles and containers

  • Reliable content measurement in containers
  • Maintenance-free operation thanks to non-contact measurement
  • Highly resistant materials ensure a long service life
To the application

Storage container for bulk solids and liquids

  • Measurement right down to the tank bottom, even in media with low dielectric constant
  • Optimal utilisation of the container volume thanks to small blocking distances.
To the application

Measuring from the outside

  • Reliable measurement right through the container walls
  • Retro-fit installation possible without opening the container
To the application

High protection class IP 68

  • Reliable monitoring of the river level
  • Simple mounting and signal transmission
  • Wireless transmission of the measured value
To the application

Why radar is the better ultrasonic

"VEGA talk" is a monthly series on the VEGA YouTube channel. The two faces of the channel are Tom Mulvey and Stefan Sum. Both are VEGA employees "in real life" and regularly talk to us about current topics. This time, Tom invited radar product manager Jürgen Skowaisa to appear on the show and present the radar sensor VEGAPULS.

Do radar sensors also measure even at changing temperatures?

We need your consentThis content is provided by an external provider. If you activate the content, personal data may be processed and cookies set.

Do radar sensors also measure reliably when flooded?

We need your consentThis content is provided by an external provider. If you activate the content, personal data may be processed and cookies set.

Do radar sensors measure reliably even with contamination?

We need your consentThis content is provided by an external provider. If you activate the content, personal data may be processed and cookies set.

Level sensors VEGAPULS

With fixed cable connection
With cable connection compartment

With fixed cable connection

With fixed cable connection Protection IP66/IP68, Type 6P
Protection IP66/IP68, Type 6P
With fixed cable connection Protection IP66/IP68, Type 6P

VEGAPULS C 11

Measuring range up to 10 m
Measuring accuracy ± 5 mm
4 … 20 mA

R 12,400.00 Base price
Show Product
With fixed cable connection Protection IP66/IP68, Type 6P

VEGAPULS C 21

Measuring range up to 20 m
Measuring accuracy ± 2 mm
4 … 20 mA, HART, Modbus, SDI-12
Explosion protection

R 17,200.00 Base price
Show Product

VEGAPULS C 22

Measuring range up to 20 m
Measuring accuracy ± 2 mm
4 … 20 mA, HART, Modbus, SDI-12
Explosion protection

R 17,200.00 Base price
Show Product

VEGAPULS C 23

Measuring range up to 30 m
Measuring accuracy ± 2 mm
4 … 20 mA, HART, Modbus, SDI-12
Explosion protection

R 21,600.00 Base price
Show Product

With cable connection compartment

With cable connection compartment Protection IP66/IP67, Type 4X
Protection IP66/IP67, Type 4X

VEGAPULS 11

Measuring range up to 10 m
Measuring accuracy ± 5 mm
4 … 20 mA


R 12,600.00 Base price
Show Product

VEGAPULS 21

Measuring range up to 20 m
Measuring accuracy ± 2 mm
4 … 20 mA, HART
Explosion protection
R 17,600.00 Base price
Show Product

VEGAPULS 31

Measuring range up to 20 m
Measuring accuracy ± 2 mm
4 … 20 mA, HART
Explosion protection
With display

R 19,800.00 Base price
Show Product

New heart for radar sensors

Today, radar sensors can be found in all areas of everyday life, from simple motion detectors for door openers to complex distance sensors in vehicles. However, the requirements for industrial level measurement differ considerably. The radar microchip newly developed by VEGA has been specially optimized for the requirements of level measurement. Thanks to the small design, very compact sensors are now possible These are significantly less expensive and can replace the previous ultrasonic sensors in almost all applications.
  • Optimized for the reflection properties of different media
  • Smallest design for the construction of compact sensor technology
  • 80 GHz technology for a very good Signal focusing
  • High accuracy in wide temperature ranges
  • Low energy consumption optimized for level measurement
  • Integrated function monitoring reduces maintenance costs


Controllers

The optional VEGAMET controllers complement VEGAPULS radar sensors and are ideal for the requirements of the water and wastewater industry. They allow a simple implementation of pump controls, flow measurements in open channels and overfill protection according to WHG.
VEGAMET 141, 142
VEGAMET 341, 342
VEGAMET 841, 842, 861, 862

VEGAMET 141, 142

for analogue sensors
rail mounting

VEGAMET 141

Input:
1x 4 … 20 mA
Output:
1x 0/4 … 20 mA current output,
3x operating relay
R 9,590.00 Base price
Show Product

VEGAMET 142

Input:
2x 4 … 20 mA sensor input
Output:
2x 0/4 … 20 mA current output,
3x operating relay
R 12,400.00 Base price
Show Product

VEGAMET 341, 342

for analogue sensors
panel mounting

VEGAMET 341

Input:
1x 4 … 20 mA
Output:
1x 0/4 … 20 mA current output,
3x operating relay
R 10,400.00 Base price
Show Product

VEGAMET 342

Input:
2x 4 … 20 mA sensor input
Output:
2x 0/4 … 20 mA current output,
3x operating relay
R 13,300.00 Base price
Show Product

VEGAMET 841, 842, 861, 862

VEGAMET 841, 842 for analogue sensors

for analogue and digital sensors
Data logger

VEGAMET 841

Input:
1x 4 … 20 mA sensor input

Output:
1x 0/4 … 20 mA current output
3x operating relay
R 11,300.00 Base price
Show Product

VEGAMET 842

Input:
2x 4 … 20 mA sensor input

Output:
2x 0/4 … 20 mA current output
3x operating relay
R 14,100.00 Base price
Show Product

VEGAMET 861

Input:
1x 4 … 20 mA/HART sensor input
2x digital input
Output:
1x 0/4 … 20 mA current output
4x operating relay



R 15,800.00 Base price
Show Product

VEGAMET 862

Input:
2x 4 … 20 mA/HART sensor input,
4x digital input
Output:
3x 0/4 … 20 mA current output
6x operating relay
R 18,900.00 Base price
Show Product

Networked solutions

During the development of the compact instrument series, the focus was also on simple installation and operation. Thanks to this, all parameters can be set quickly and easily. Even wirelessly via the VEGA Tools app on a smartphone or tablet. With myVEGA you also get all the information you need about your products.

Wireless communication provides better accessibility: Simply via VEGA Tools app – on any available smartphone or tablet.

Wireless adjustment

With Bluetooth, VEGA is looking far into the future. But already today, radio technology is making processes more and more flexible. Wireless communication provides better accessibility: In clean rooms, in harsh industrial environments and in hazardous areas. It allows parameterisation, display and diagnostics from a distance of up to 25 metres, thus saving time and avoiding dangers. Simply via VEGA Tools app – on any available smartphone or tablet.

With myVEGA as your personal information platform you have access to numerous online functions relating to the VEGA products.

myVEGA

With myVEGA as your personal information platform you have access to numerous online functions relating to the VEGA products.

  • 2D/3D drawings of configured instruments
  • Access to product documentation and order data
  • Access codes for VEGA sensors
More information
Brochure radar is the better ultrasonic

Brochure radar is the better ultrasonic

Compact level sensors with 80 GHz radar technology
Download now

Have we aroused your interest?

Every application is different and has its own special challenges. You’d like to talk with an expert and work out together with him which sensor best fulfils your requirements? Just give us a call. We’re happy to give advice and help you select the right instrument.
