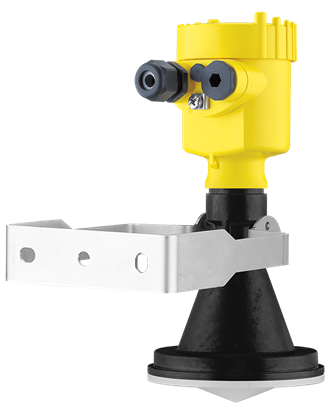

VEGAPULS 67
Radar sensor for continuous level measurement of bulk solids
For simple process conditions
|
|
Application area
Your benefit
- High plant availability, because wear and maintenance-free
- Maintenance-free operation through non-contact measuring principle
- Reliable measurement independent of vapour, dust and noise
Newer product available
There is a successor for this product. If you have any questions about the product, please contact your VEGA representative.
VEGAPULS 6XConfigure product
Product comparison
All documents and software for this product can be found in our Download Center.
Show all downloadsLevel measurement of bulk solids – the economic solution for bulk solids measurement
- 15 m [Meter - Foot]
- -40 ... 80 °C [°C - °F]
- -1 ... 2 bar [Bar - kPa - psi]
- ± 2 mm
- 26 GHz
- ≥ 10°

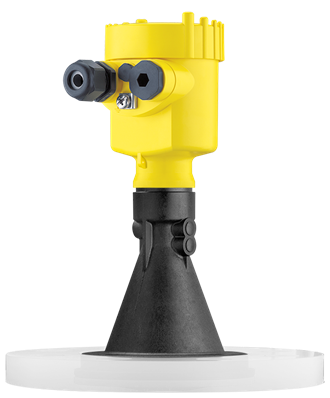

- with plastic horn antenna ø 80 mm
- PP
- ≥ DN80, ≥ 3"
- Plastic
- Aluminium
- Stainless steel (precision casting)
- Stainless steel (electropolished)
- IP66/IP68 (0,2 bar)
- IP66/IP67
- IP66/IP68 (1 bar)
- Profibus PA
- Foundation Fieldbus
- Two-wire: 4 … 20 mA/HART
- Modbus
- Four-wire: 4 … 20 mA/HART
- -40 ... 80 °C
- ATEX / Europe
- CSA / Canada
- FM / USA
- EAC (GOST) / Belarus
- EAC (GOST) / Kazakhstan
- EAC (GOST) / Russia
- IEC / worldwide
- KOSHA / Korea
- NEPSI / China
- UKR Sepro / Ukraine
- Dust ignition protection "t"
- SIL2
- PLICSCOM
- PC, PACTware and DTM
- HART-Communicator
- Software (e. g. AMS™, PDM)
- Display/adjustment module PLICSCOM
- VEGADIS 81
- VEGADIS 82
Drawing generator
Generate 2D and 3D drawings for your specific configuration.
Configure NowProduct information
VEGAPULS 67, SR 68, 68, 69
Specification sheet
VEGAPULS 67
Two-wire: 4 … 20 mA/HART
Operating instructions
VEGAPULS 67
Two-wire: 4 … 20 mA/HART
Drawing generator
