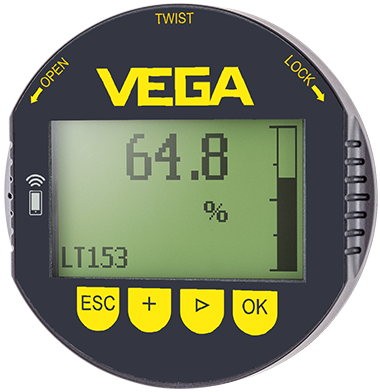

PLICSCOM

Pluggable display and adjustment module for plics® sensors

Measured value indication and adjustment of plics® sensors


PLICSCOM - Pluggable display and adjustment module for plics® sensors
PLICSCOM

Application area

Universal display and adjustment module suitable for all sensors of the VEGA plics® family, VEGABAR series 50/60/80, VEGADIF 65/85, VEGACAL series 60, VEGAFLEX series 60/80, VEGAPULS series 60, VEGASON series 60, PROTRAC as well as VEGADIS series 80.

Your benefit

  • Simples de separar, portanto, use também com outros sensores
  • Ajuste simples e confiável dos sensores plics® através de indicação de texto claro com suporte gráfico abrangente
  • Gasto mínimo de tempo por meio de função confiável e visor LC claro e com capacidade gráfica com operação de 4 teclas, bem como iluminação integrada
  • Possibilidade opcional de operação sem fio via Bluetooth com smartphone/tablet/PC, bem como operação com caneta magnética no caso de tampa do invólucro com janela de inspeção

Configure product

Configure product

All documents and software for this product can be found in our Download Center.

Show all downloads
Application
Technical specifications
Documentation
Accessories
Configure product

The display and adjustment module PLICSCOM is used for indicating measured values directly on site. as well as remotely setting up and operating plics® sensors. A PC or special software is not required. This display and adjustment module can be inserted into any sensor and removed again, without having to interrupt the power supply. Sensors with double-chamber housing allow installation of the display and adjustment module in either compartment for easier access and visualisation .

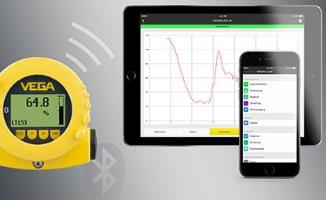

› PLICSCOM now optionally with Bluetooth
Technical specifications
Classificação de proteção
  • IP20/IP40
Temperatura ambiente
  • -20 ... 70 °C
Sinal de entrada (especificar)
  • plics sensor (serial), Bluetooth
Saída de sinal (especificar)
  • Display
Approvals
Escopo
  • ATEX / Europa
  • IEC / mundial
  • UKEX
Proteção contra explosões
  • Segurança intrínseca Ex ia
Aprovação do navio
  • DNV
  • LR
  • NK
Display & adjustment
Indicação
  • Visor LC com capacidade gráfica
