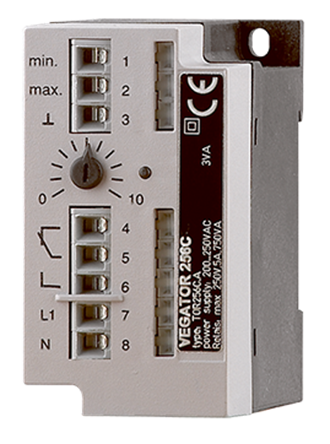

VEGATOR 256C

Controller for conductive probes

Transmission of signals of conductive probes


VEGATOR 256C

Application area

The VEGATOR 256C is a controller for conductive electrodes EL 1 … EL 8. Applications are simple level detections or pump controls.

Your benefit

  • Simple adjustment of the switching points via potentiometer
  • Simple installation through carrier rail mounting
  • Compact unit of voltage supply and processing of a conductive probe

Configure product

Configure product

All documents and software for this product can be found in our Download Center.

Show all downloads
Application
Technical specifications
Documentation
Accessories
Configure product
Technical specifications
Protection rating
  • IP20
Input
  • 1 x level detection or 1 x pump control
Output
  • 1 x operating relay
Ambient temperature
  • -20 ... 50 °C
Signal input (specify)
  • Conductive
Signal output (specify)
  • Operating relay
Display & adjustment
Adjustment
  • DIP switch
Indication
  • LED

Product information

VEGATOR 256C, 532, 631

    • EN
    • DE
    • FR
Download

Operating instructions

VEGATOR 256C

    • EN
    • DE
    • FR
    • NL
    • PT
Download

Further downloads for this product

All documents and software for this product can be found in our Download Center.

Show all downloads
