VEGACAL 62

Sürekli dolum seviyesi ölçümü için kapasitif çubuk ölçüm sondası

Çubuk sonda, PTFE kısmen yalıtımlı


Uygulama sahasi

Katı malzemelerin ve sıvı yağ gibi iletken olmayan sıvıların ölçümü için. Devreye alım için dolu/boş ayarı yapılması gerekir.
VEGACAL 62, tüm endüstri sahalarında dolum seviyesinin sürekli ölçülmesi için bir dolum seviyesi sensörüdür. Kısmen izole edilmiş ölçüm sondası dökme malzemelerin ölçülmesi için tasarlanmıştır ve iletken olmayan sıvıların (örn. yağ) içinde de kullanılabilir. Kaliteli mekanik yapısı yüksek bir fonksiyon güvenliği sağlar.

Yararlari

  • Alta flexibilidad gracias a la sonda recortable
  • Vida útil prolongada y bajo mantenimiento gracias a su construcción mecánica robusta
  • Máximo aprovechamiento del depósito gracias a que la medición se realiza en toda la longitud de la sonda

Ürünü konfigüre et

Ürünü konfigüre et

Bu ürüne ait tüm dökümanlar ve yazılımlar İndirme Merkezimizde bulunabilir.

Tüm indirilenleri göster
Uygulama
Teknik veriler
Dökümanlar
Aksesuar
Ürünü konfigüre et
Teknik veriler
Rango de medición - Distancia
  • 6 m [Meter - Foot]
Temperatura de proceso
  • -50 ... 200 °C [°C - °F]
Presión de proceso
  • -1 ... 64 bar [Bar - kPa - psi]
Versión
  • con tubo apantallado PN1
  • con tubo concéntrico
  • Estándar
Materiales, partes mojadas
  • PTFE
  • 316L
  • Aleación 400 (2.4360)
  • PEEK
  • Acero C22.8
Conexión en rosca
  • ≥ G½, ≥ ½ NPT
Conexión en brida
  • ≥ DN25, ≥ 1"
Material de sellado
  • sin contacto con el producto
Material de la carcasa
  • Plástico
  • Aluminio
  • Acero inoxidable (fundición)
  • Acero inoxidable (electropulido)
Tipo de protección
  • IP66/IP68 (0,2 bar)
  • IP66/IP67
  • IP66/IP68 (1 bar)
Salida
  • Profibus PA
  • Foundation Fieldbus
  • Dos hilos: 4 … 20 mA/HART
Temperatura ambiente
  • -40 ... 80 °C
Onaylar
Ámbito de aplicación
  • ATEX / Europa
  • CSA / Canada
  • FM / EE. UU.
  • EAC (GOST) / Bielorrusia
  • EAC (GOST) / Kazajistán
  • EAC (GOST) / Rusia
  • IEC / Mundial
  • KOSHA / Corea
  • NEPSI / China
  • UKR Sepro / Ucrania
  • INMETRO / Brasil
Protección contra explosión
  • Seguridad intrínseca "i"
  • Protección contra expolsión de polvo "t"
Industria alimentaria/farmacéutica
  • FDA
Homologación naval
  • ABS
  • BV
  • CCS
  • DNV
  • GL
  • LR
  • RINA
  • RMROS
Protección contra sobrellenado
  • WHG
  • VLAREM II
Calificación SIL
  • SIL2
Gösterge ve kullanım
Ajuste
  • PLICSCOM
  • Ordenador, PACTware y DTM
  • Comunicador HART
  • Software p. ej., AMS™, PDM)
Visualización
  • Módulo de visualización/configuración PLICSCOM
  • VEGADIS 81
  • VEGADIS 82

Çizim jeneratörü

Bireysel konfigürasyonunuz için 2B ve 3B çizimleri oluşturun.

Simdi konfigüre et

Ürün katalogları

kapasitif

    • TR
    • EN
    • DE
    • CS
    • ES
    • FR
    • IT
    • NL
    • PL
    • PT
    • ZH
Indir

Ürüne ait bilgiler

VEGACAL 62, 65, 66, 67

    • EN
    • US
    • DE
    • ES
    • FR
    • IT
    • NL
    • PT
    • ZH
Indir

Ürüne ait bilgiler

VEGACAL 62, 63, 64, 66, 69

    • EN
    • US
    • DE
    • ES
    • FR
    • IT
    • NL
    • PT
    • ZH
Indir

Ürün Veri Pusulası

VEGACAL 62

İki telli: 4 … 20 mA/HART

    • TR
    • EN
    • US
    • DE
    • ES
    • FR
    • IT
    • NL
    • PT
    • ZH
Indir

İşletim kılavuzu

VEGACAL 62

İki telli: 4 … 20 mA/HART

    • TR
    • EN
    • DE
    • CS
    • DA
    • ES
    • FI
    • FR
    • HU
    • IT
    • KK
    • KO
    • NL
    • NO
    • PL
    • PT
    • SV
    • UK
    • ZH
Indir

Çizim jeneratörü

Bireysel konfigürasyonunuz için 2B ve 3B çizimleri oluşturun.

Simdi konfigüre et

Bu ürün için daha fazla Yüklemeler

Bu ürüne ait tüm dökümanlar ve yazılımlar İndirme Merkezimizde bulunabilir.

Tüm indirilenleri göster
Gösterge cihazları
Kontrol cihazları
Verilerin kablosuz iletimi
Güç kaynakları
Aksesuarlar
Yedek parçaları
Önerimiz

PLICSCOM

Measured value indication and adjustment of plics® sensors

Ürün detaylari

Bluetooth-USB-Adapter

Wireless adjustment of sensors and instruments via Bluetooth

Ürün detaylari

VEGADIS 81

Remote measurement value indication and adjustment of plics® sensors

€ 320.00

Base price

Ürün detaylari

VEGADIS 82

External measured value display and adjustment for 4 ... 20 mA/HART sensors

€ 250.00

Base price

Ürün detaylari

VEGADIS 176

Remote display for use in 4 ... 20 mA current loop

€ 230.00

Base price

Ürün detaylari

Magnetic pen for display/adjustment module PLICSCOM

PLICSCOM Magnet Pen

Magnetic pen for on-site adjustment

Ürün detaylari

VEGAMET 141

1 x 4 … 20 mA sensor input, 1 x 4 … 20 mA current output, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation

€ 430.00

Base price

Ürün detaylari

VEGAMET 142

2 x 4 … 20 mA sensor inputs, 2 x 4 … 20 mA current outputs, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation

€ 550.00

Base price

Ürün detaylari

VEGAMET 341

1 x 4 … 20 mA sensor input, 1 x 4 … 20 mA current output, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation

€ 460.00

Base price

Ürün detaylari

VEGAMET 342

2 x 4 … 20 mA sensor inputs, 2 x 4 … 20 mA current outputs, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation

€ 590.00

Base price

Ürün detaylari

VEGAMET 841

1 x 4 ... 20 mA sensor input, 1 x 4 ... 20 mA current output, 3 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation

€ 500.00

Base price

Ürün detaylari

VEGAMET 842

2 x 4 ... 20 mA sensor inputs, 2 x 4 ... 20 mA current outputs, 3 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation

€ 630.00

Base price

Ürün detaylari

VEGAMET 861

1 x 4 ... 20 mA/HART sensor input, 2 x digital inputs, 1 x 4 ... 20 mA current output, 4 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation

€ 700.00

Base price

Ürün detaylari

VEGAMET 862

2 x 4 ... 20 mA/HART sensor inputs, 4 x digital inputs, 3 x 4 ... 20 mA current outputs, 6 x operating relays, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation

€ 840.00

Base price

Ürün detaylari

VEGAMET 624

Measured value indication, simple control functions such as remote enquiry of measured values for a 4 ... 20 mA/HART sensor

Ürün detaylari

VEGAMET 625

Measured value indication, simple control functions such as remote enquiry of measured values for two HART sensors

Ürün detaylari

VEGAMET 391

Measured value indication, simple control functions, remote enquiry of measured data. optimized for water/sewage water industry

Ürün detaylari

VEGATOR 141

Transmission of 4 ... 20 mA signals for level signalling

€ 240.00

Base price

Ürün detaylari

VEGATOR 142

Transmission of 4 ... 20 mA signals for level signalling

€ 340.00

Base price

Ürün detaylari

VEGASCAN 693

Measured value indication and remote enquiry of measured data for up to 15 HART sensors

Ürün detaylari

PLICSMOBILE T81

externe-GSM-GPRS-Funkeinheit

Measured data enquiry and remote parameter adjustment for a HART sensor

Ürün detaylari

VEGACONNECT

Interface adapter between PC and VEGA instruments

Ürün detaylari

VEGABOX 03

Breather housing with ventilation filter

Ürün detaylari

Profibus PA/DP segment kuplörü

Simple segment coupler for up to 93.75 kbit/s DP-side

Ürün detaylari

VEGACAL / VEGACAP 62,63 ve 64 için conta adaptör seti

Proses bağlantı adaptörü VEGACAP/CAL60

VEGACAL / VEGACAP 62,63 ve 64 için conta adaptör seti

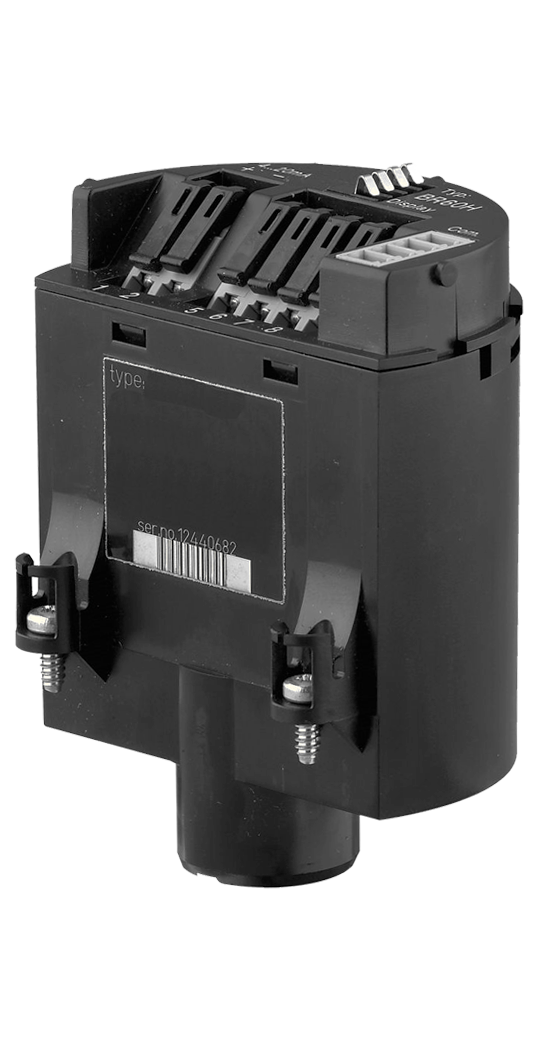

Elektronik VEGACAL Seri 60

Proses yapı grubu VEGACAL 62
