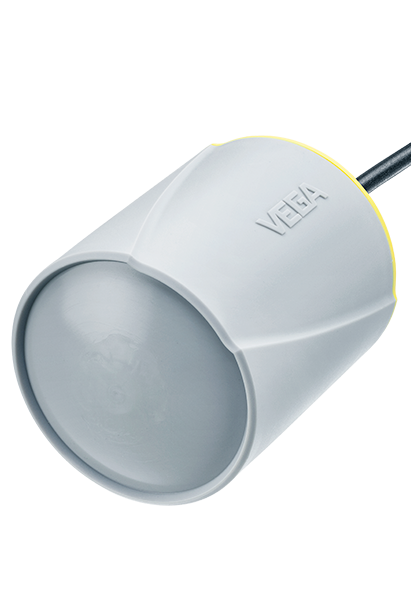

VEGAPULS C 23
带电缆雷达物位计,用于连续物位测量
适用于标准测量应用,IP66/IP68,6P 级
应用范围
您的获益
- 测量结果精确,不受介质、工艺和环境条件的影响
- 信号聚焦能力强,不受容器内构件影响
- 采用非接触式 80 GHz 雷达技术,运行免维护
- 30 m [Meter - Foot]
- -40 ... 80 °C [°C - °F]
- -1 ... 3 bar [Bar - kPa - psi]
- ± 2 mm
- 80 GHz
- 4°
- PVDF
- G1, 1 NPT, R1
- IP66/IP68 (3 bar),6P 级
- 4 … 20 mA/HART
- Modbus
- SDI-12
- -40 ... 80 °C
- ATEX / 欧洲
- IEC / 全球
- NEPSI / 中国
- INMETRO / 巴西
- CCOE / 印度
- KTL 韩国
- CSA / 美国和加拿大
- FM / 美国和加拿大
- TIIS / 日本
- IA
- UKEX
- 本质安全型“i”
- 防粉尘点燃外壳“t”
- Encapsulation "m"
- FDA
- ABS
- BV
- CCS
- GL
- LR
- NK
- RINA
- WHG(德国水资源法)
- PC,PACTware 和 DTM
- 智能手机 / 平板 / PC(蓝牙连接)
图纸发生器
按照您的专用配置生成 2D 和 3D 图纸。
现在配置产品目录
雷达
产品信息
VEGAPULS C 11, C 21, C 22, C 23, 11, 21, 31
产品数据表
VEGAPULS C 23
4 … 20 mA/HART - 两线制
操作说明书
VEGAPULS C 23
4 … 20 mA/HART - 两线制
图纸发生器
该产品的更多下载
可以在我们的下载中心找到该产品的所有文档和软件。
