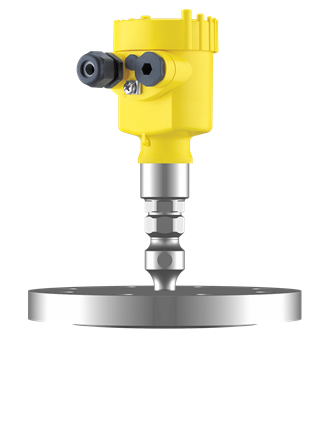

VEGABAR 81
压力变送器,带化学密封装置
带化学密封装置,适用于高温应用
应用范围
您的获益
- 选型配置丰富,轻松匹配过程
- 在高达 400 °C 的温度下可靠测量
- 不受泡沫及容器内装件影响,测量精准可靠
带化学密封装置的压力变送器,适用与高温及化学腐蚀性介质
VEGABAR 81 可为设备控制或 SIS 安全仪表系统提供可靠的测量值,例如
- 连续监测反应器过程压力
- 检测垃圾焚烧等过程中的烟气排放压力
- 测量乳制品加工厂管道压力
- 监测汽包的蒸汽压力
- 监测 LNG 储罐压力
其他应用
- - [Meter - Foot]
- -1 ... 1000 bar [Bar - kPa - psi]
- -90 ... 400 °C [°C - °F]
- -1 ... 1000 bar [Bar - kPa - psi]
- 0.2 %
- 0.1 %
- C22 合金 (2.4602)
- 400 合金 (2.4360)
- 钽
- C276 合金 (2.4819)
- 双相不锈钢 (1.4462)
- 2 级钛 (3.7035)
- 1.4435
- 316/316L
- 7 级钛 (3.7235)
- ≥ G½, ≥ ½ NPT
- ≥ DN25, ≥ 1"
- 卡箍 ≥ 1" - DIN32676, ISO2852
- 螺纹管接头 ≥ 1½", ≥ DN40 - DIN 11851
- 卫生型法兰压板连接 - DN32
- 卫生型圆螺母连接 - F40
- 卫生型法兰连接 ≥ DN50 - DIN11864-2
- 卫生型螺纹接头 ≥ DN40 - DIN11864-1-A
- 无密封件与介质接触
- 塑料
- 铝
- 不锈钢(精密铸件)
- 不锈钢(电解抛光)
- IP66/IP68 (0.2 bar)
- IP66/IP67
- IP66/IP68 (1 bar)
- IP66/IP68 (25 bar)
- IP69K
- Profibus PA
- Foundation Fieldbus
- 4 … 20 mA
- 两线制:4 … 20 mA/HART
- Modbus
- 用于电子差压测量的从表电子部件
- -40 ... 80 °C
- ATEX / 欧洲
- CSA / 加拿大
- FM / 美国
- EAC (GOST) / 白俄罗斯
- EAC (GOST) / 哈萨克斯坦
- EAC (GOST) / 俄罗斯
- IEC / 全球
- NEPSI / 中国
- UKR Sepro / 乌克兰
- INMETRO / 巴西
- CCOE / 印度
- CSA / 美国和加拿大
- 本质安全型“i”
- 隔爆外壳“d”
- 防粉尘点燃外壳“t”
- FDA
- EG1935/2004
- ABS
- BV
- CCS
- DNV
- LR
- RINA
- WHG(德国水资源法)
- VLAREM II
- SIL2
- PLICSCOM
- PC,PACTware 和 DTM
- HART 手操器
- 软件(例如 AMS™,PDM)
- 显示/操作模块 PLICSCOM
- VEGADIS 81
- VEGADIS 82
图纸发生器
按照您的专用配置生成 2D 和 3D 图纸。
现在配置产品目录
过程压力
产品信息
VEGABAR 81, 82, 83
产品数据表
VEGABAR 81
4 … 20 mA - 两线制
操作说明书
VEGABAR 81
4 … 20 mA - 两线制
图纸发生器
该产品的更多下载
可以在我们的下载中心找到该产品的所有文档和软件。
