Storage tanks for highly toxic liquids
Level measurement and point level detection in highly toxic media
|
|
Process data
Measuring task:
Level measurement and point level detection
Measuring point:
Tank
Measuring range up to:
3 m
Medium:
Highly toxic substances, e.g. phosgene
Process temperature:
-40 … +60 °C
Process pressure:
0 … 0 bar
Special challenges:
Highly toxic, chemically aggressive, volatile media
Application
For extremely toxic substances such as phosgene, absolute control over the process is a necessity. In industrial applications, these products are only used in hermetically closed circuits. To minimize the inherent risks, independent protection devices form an integral part of the tank equipment. Moreover, it is important to keep the number of tank openings as small as possible. An external level measuring system that includes point level detection is ideal for such situations.
Your benefit
Reliable
Redundant measurement for maximum security
Cost effective
No additional process fittings on the tank necessary
User friendly
Maintenance-free and reliable in operation
Recommended products

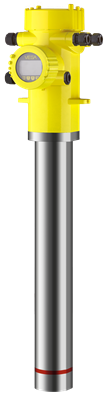

SOLITRAC 31
Radiation-based sensor for continuous level measurement in storage tanks for highly toxic substances
- Maximum safety and process integrity, regardless of media properties
- No container opening required, the measurement is carried out on the outside of the tank
- Maintenance-free operation, no wetted parts
Measuring range - Distance
3 m
Process temperature
-
Process pressure
-
MINITRAC 31
Radiation-based level detection for overfill or dry run protection in storage tanks for highly toxic substances
- Reliable monitoring of the minimum or maximum level, independent of media properties
- No container opening required, the measurement is carried out from the outside through the container wall
- Maintenance-free operation, no wetted parts
Measuring range - Distance
-
Process temperature
-40 ... 60 °C
Process pressure
-
