Sludge storage tank
Level measurement in the sludge storage tank
|
|
Process data
Measuring task:
Level measurement
Measuring point:
Sludge storage tank
Measuring range up to:
0 … 15 m
Medium:
Digested sludge
Process temperature:
0 ... +30 °C
Process pressure:
0 … 0 bar
Special challenges:
Steam, buildup, condensate
Application

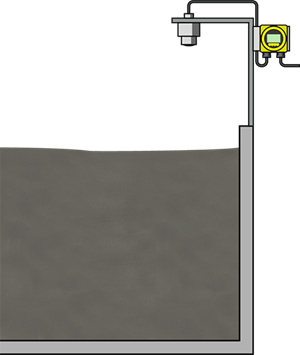

The digested sewage sludge is pumped into a sludge storage tank. This tank serves as an intermediate storage facility before the sludge is fed to the centrifuge or pressed for mechanical dewatering. To ensure optimal feeding, the sludge volume is monitored by a level measuring instrument.
Your benefit
Reliable
Reliable content measurement in the sludge storage tank
Cost effective
Non-contact measurement ensures maintenance-free operation
User friendly
Simple installation and setup
Recommended products
VEGAPULS C 21
Continuous level measurement with radar for monitoring the sludge quantity
- Maintenance-free operation through non-contact 80 GHz radar technology
- Precise measuring results independent of steam, buildup and condensate
- Highly corrosion resistant design ensures a long service life
- Secure wireless operation via Bluetooth with smartphone, tablet or PC
Measuring range - Distance
15 m
Process temperature
-40 ... 80 °C
Process pressure
-1 ... 3 bar
VEGADIS 82
External measured value display in field housing
- Easy-to-read display with plain text and graphics
- Robust housing designed for the harsh conditions in the field
Housing material
Plastic
Aluminium
Stainless steel (precision casting)
Protection rating
IP66/IP67
Ambient temperature
-20 ... 70 °C
