Process water tank

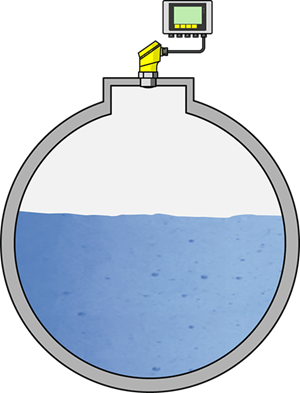

Level measurement in the process water tank
|
|
Process data
Measuring task:
Level measurement
Measuring point:
Tank
Measuring range up to:
0 … 6 m
Medium:
Wastewater
Process temperature:
0 … +100 °C
Process pressure:
-1 … +5 bar
Special challenges:
Abrasion
Application
The process water is collected in tanks or open basins. Pressure pumps deliver the water for cleaning and rinsing purposes to various locations in the wastewater treatment plant. To ensure an optimal supply of water, the level in the process water tank is measured continuously.
Your benefit
Reliable
Reliable measurement of the process water volume
Cost effective
Maintenance-free measurement with high accuracy
User friendly
Simple installation and setup
Recommended products
VEGAPULS 11
Continuous level measurement with radar in the process water tank
- Low-cost radar sensor for simple measuring tasks
- Maintenance-free operation through non-contact 80 GHz radar technology
- Secure, user-friendly wireless operation via Bluetooth with smartphone, tablet or PC
Measuring range - Distance
8 m
Process temperature
-40 ... 60 °C
Process pressure
-1 ... 3 bar
VEGAMET 841
Controller for powering the sensor, processing and displaying the measured values
- Clear, easy-to-read, user programmable display
- Robust housing designed for the harsh conditions in the field
- Universal controller for water and wastewater applications
Protection rating
IP66/IP67, Type 4X
Input
1 x 4 … 20 mA sensor input
Output
1 x 0/4 … 20 mA current output
3 x operating relay
1x failure relay (instead of operating relay)
