Vacuum sewerage system

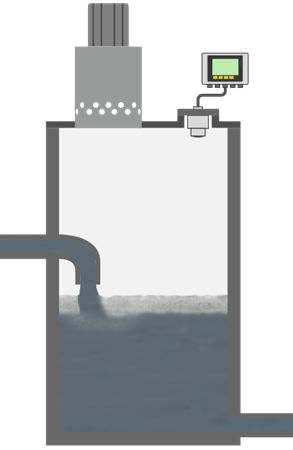

Level measurement in a vacuum tank
|
|
Process data
Measuring task:
Level measurement
Measuring point:
Vacuum tank
Measuring range up to:
0 … 4 m
Medium:
Wastewater
Process temperature:
+10 ... +30 °C
Process pressure:
-1 … +1 bar
Special challenges:
Foam, buildup, condensate
Application
When new building zones are opened up, it is often quite expensive to build a sewerage network with the necessary downward slope. In such cases, a vacuum sewerage network offers an interesting alternative to traditional sewer systems. The wastewater is transported to the pumping station under vacuum, which allows significantly smaller pipes to be used and stretches of upward slope spanned. A central vacuum pumping unit conveys the wastewater from households via a central sewage discharge into the public sewer system. To effectively control the system the level in the vacuum tank must be continuously monitored.
Your benefit
Reliable
Reliable function under all operating conditions
Cost effective
Maintenance-free operation of the system
User friendly
Simple installation and setup
Recommended products
VEGAPULS C 21
Vacuum tank level measurement using non-contact radar
- Reliable function under constantly changing pressure conditions
- Reliable level measurement even with foam and turbulent surface
- Low-cost radar sensor for simple measuring tasks
Measuring range - Distance
15 m
Process temperature
-40 ... 80 °C
Process pressure
-1 ... 3 bar
VEGAMET 841
Power supply for sensor, measurement data processing and display
- Clear, easy-to-read, user programmable display
- Robust housing designed for the harsh conditions in the field
- Universal controller for water and wastewater applications
Protection rating
IP66/IP67, Type 4X
Input
1 x 4 … 20 mA sensor input
Output
1 x 0/4 … 20 mA current output
3 x operating relay
1x failure relay (instead of operating relay)
